C2 WRK4007

EHAUS EURO, PHI LOW ENERGY

Wairarapa Carterton

Carbon Savings

13,891 KG

Heat Savings

91%

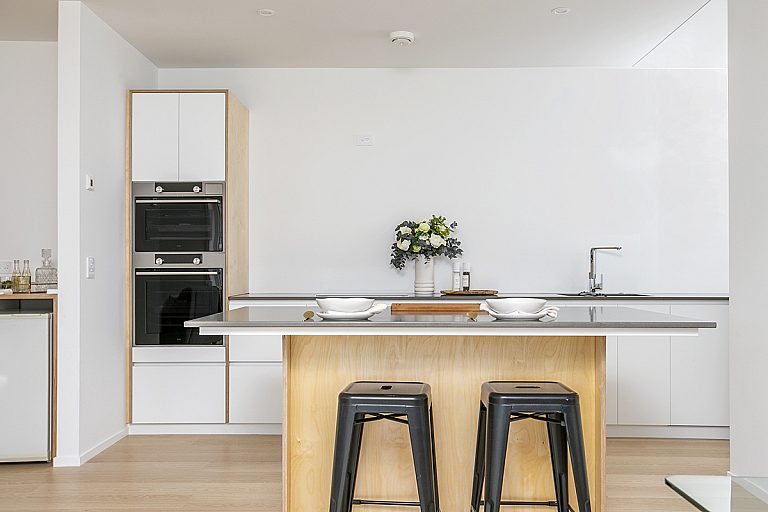

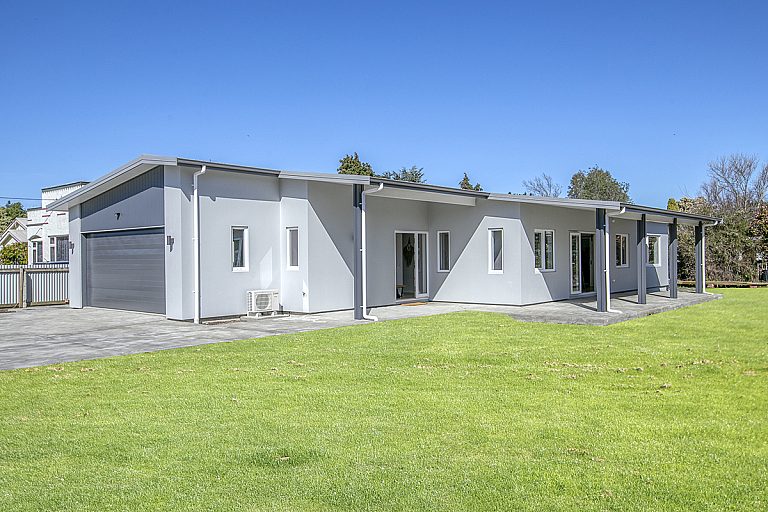

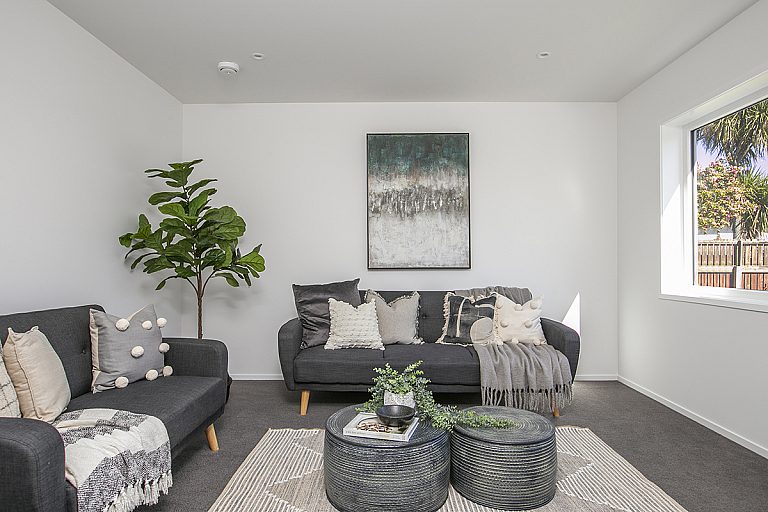

This modern home offers a blend of comfort and functionality. It features a covered outdoor patio, ideal for outdoor gatherings. Inside, there are three bedrooms, two bathrooms, and a separate laundry. The open-plan kitchen, dining, and living area, along with a separate media room, provide ample space for relaxation and entertainment. Constructed with quality materials, including an insulated concrete slab and a 190mm double insulated wall, and equipped with a Zehnder Mechanical Heat Recovery Ventilation system, the home ensures comfort, energy efficiency and durability.

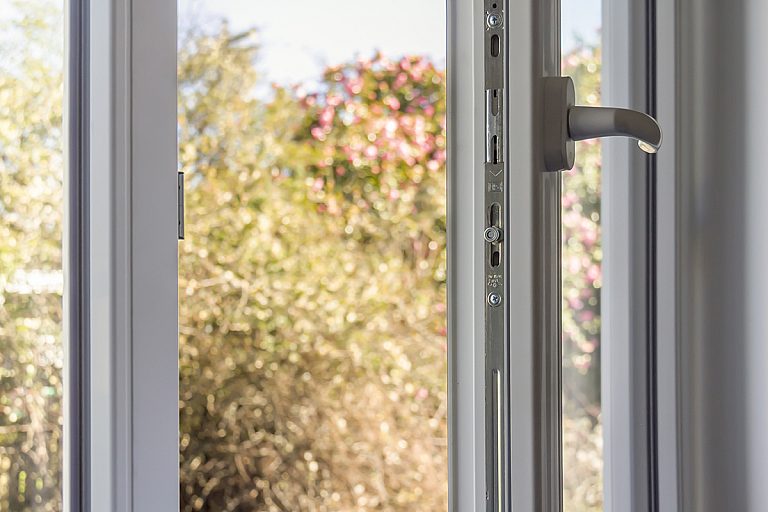

Double glazed windows enhance insulation, while Resene Construction Cladding and a Colorsteel roof add to the home’s aesthetic appeal. Additionally, a double garage with extra space for a workshop or storage adds practicality to this inviting 190sqm layout.

"

We appreciated feeling welcome to ask questions throughout the whole process and that we got honest answers back every time. The result was a brilliant design solution that could be built to our tight budget on a restrictive section. Now that we're in the house we're realising just how perfect the design is and that the house really performs wonderfully.

"

— Christina Hyman

Meet the team Behind this project

Ross designhaus

Ross Bennett

Ross is a specialist in Passive House design and is located in the Manawatū, but works on projects around the country.

Design Components

Floor
Fully insulated concrete pad with a U-value of 0.182 W/(m²K)
Wall
140mm timber frame with service cavity U-value = 0.223 W/(m²K)
Roof
Double layer of fibreglass insulation U-value of 0.131 W/(m²K)
Window Joinery Frame
Energate 763 - uPVC - Uf value: 1.1 W/(m²K)
Glazing
Energate - Double glazed Argon U g-value = 1.10 W/(m²K) g-value = 61%
Ventilation
Zehnder Comfo Air Q350 MHRV
Hot Water
Bosch Compress 3000 - 270L capacity hot water heat pump
Heating/Cooling
Air to Air Heatpump

Performance Specs

Heating Demand
15.5 kWh/(m²yr)
Heating Load
11.7 W/m²
Frequency of Overheating
2.9% year over 25C
TFA
137 m²
Treated Floor Area
155.79 m²
Form Factor
3.48
Air Leakage @ 50Pa
0.47 ACH
Per Demand
40 kWh/(m²yr)

Consultant: eHaus -Maria Rei

Certifier: N/A
