Burgoyne001

EHAUS EURO, PHI LOW ENERGY

Kapiti Waikanae Central

Carbon Savings

13,212 KG

Heat Savings

82%

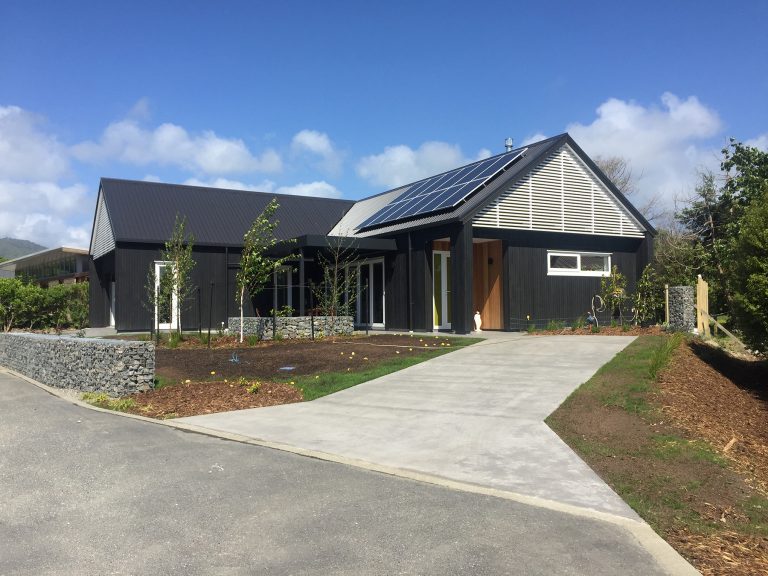

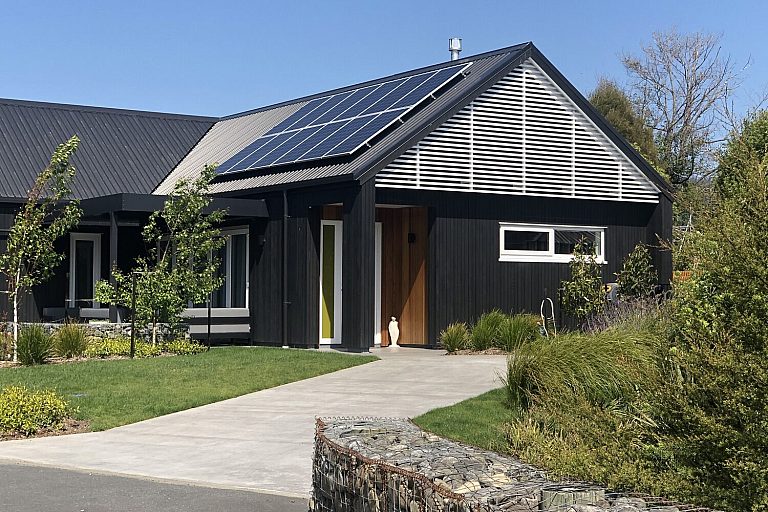

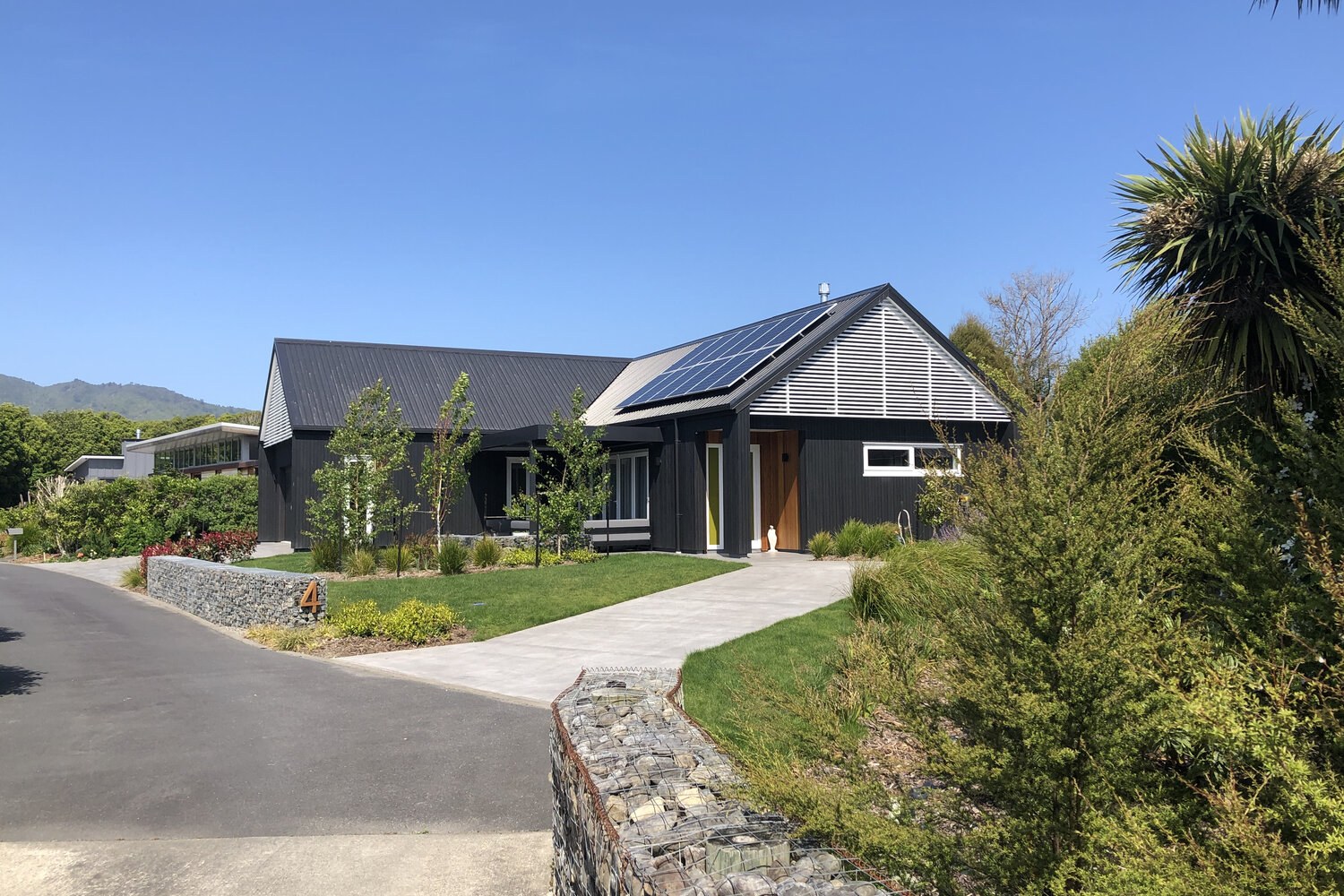

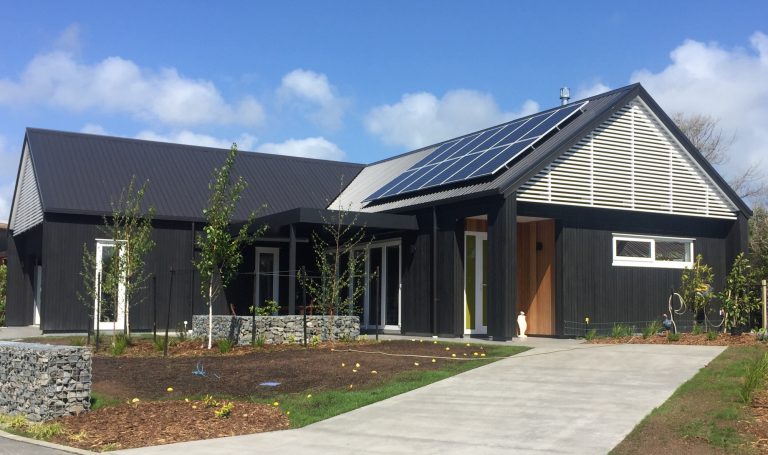

This a small but perfectly formed eHaus is nestled in a private retreat away from the business of life. It has all you need including 3 bedrooms and an amazing private outdoor area linking directly to the internal living space. With all of the normal eHaus features and some extras this home has a very light footprint on the planet and generates most of the electricity that is needed to run the home through the year. "From the time we had our kick off meeting… About 20th March... basically we came out of Consent on the 21st of July, so been a four month process. Working together between the design and the builder and ourselves, very tightly together, has been the right way to go"– Robin
"

When we come home we feel like we are on holiday it is so quiet and comfortable. Brent is coughing a lot less due to his asthma now we have a controlled air environment, all this and we’re saving heaps on our electricity bills, we only spend 50 to 80 dollars monthly on power not 450 to 600 dollars.

"

— Brent and Helen Bohanna

Meet the team Behind this project

Ross designhaus

Ross Bennett

Ross is a specialist in Passive House design and is located in the Manawatū, but works on projects around the country.

Design Components

Floor
Fully insulated concrete pad with a U-value of 0.184 W/(m²K)
Wall
140mm timber frame with service cavity U-value of 0.223 W/(m²K)
Roof
Double layer of fibreglass insulation U-value of 0.138 W/(m²K)
Window Joinery Frame
Advanced Windows NZ- uPVC – Uf value 1.50 W/(m²K)
Glazing
Double glazed Argon Ug value = 1.1 W/(m²K) g-value = 61%
Ventilation
Zehnder Comfo Air 350 LH MHRV
Hot Water
Bosch Compress 3000 – 270L capacity hot water heat pump
Heating/Cooling
DF 960 Gas fire. Under tile heating mat on ensuite and bathroom
Power Generation
3 kW Solar PV system

Performance Specs

Heating Demand
24.0 kWh/(m²yr)
Heating Load
15.1 W/m²
Frequency of Overheating
1%
TFA
125.97 m²
Form Factor
3.93
Air Leakage @ 50Pa
0.80 ACH
Per Demand
33 kWh/(m²yr)

Consultant: Jon Iliffe

Certifier: N/A
