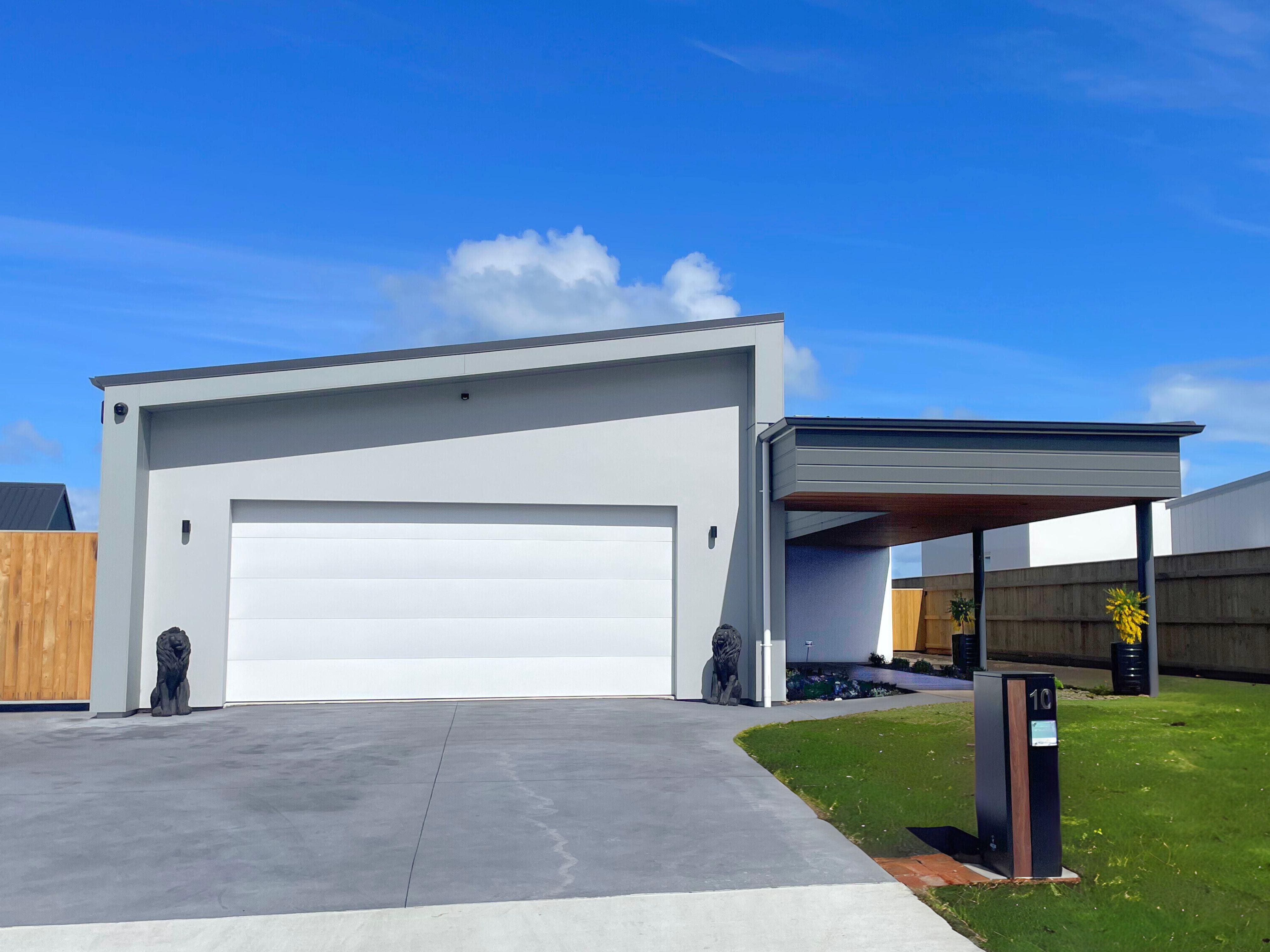

Emmetts house

EHAUS EURO

Noho

Carbon Savings

220 KG

Heat Savings

85%

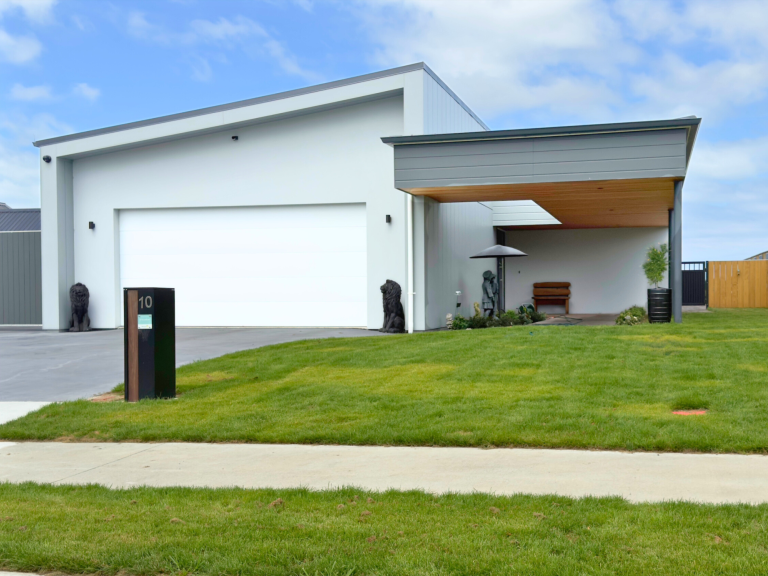

Noho is a high-performance eHaus designed to support comfort, health, and ease of living as its owners move into retirement. Replacing a much larger previous home, this architecturally designed 177sqm residence delivers stable year-round temperatures, exceptional quietness, and dramatically reduced energy demand.

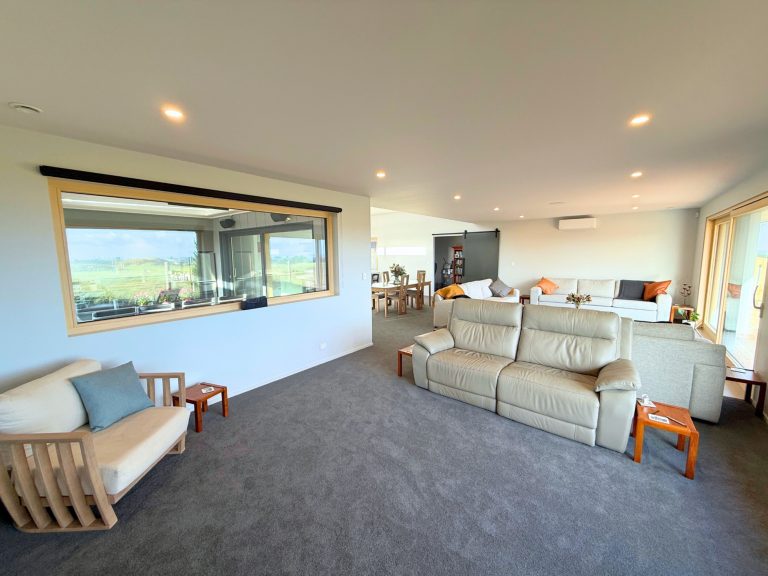

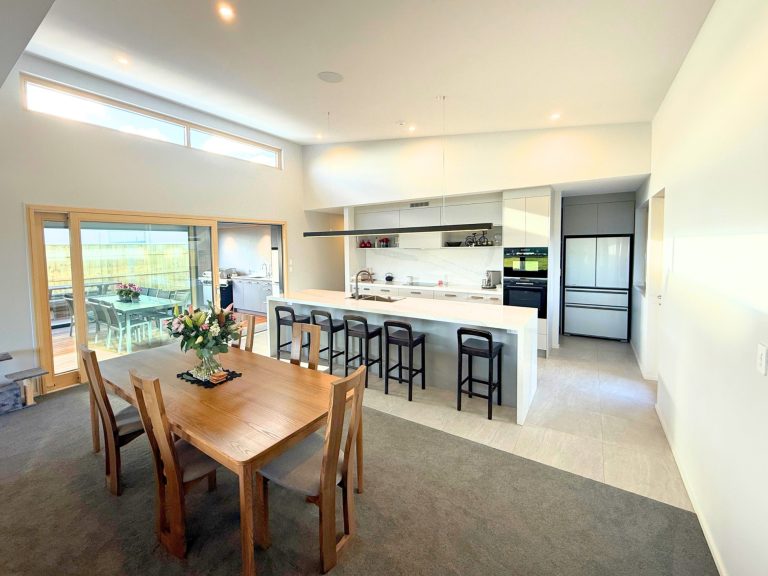

The three-bedroom home includes two bathrooms and an open-plan kitchen, dining and living area that flows seamlessly to two separate outdoor living spaces. One is covered with louvres and enclosed with sliding glass doors, meaning this versatile area can be enjoyed in all weather. It can be opened up on warm, sunny days, or closed off to create a sheltered, light-filled extension of the living space during cooler or windy conditions. The built-in kitchenette further enhance its functionality. The large south-west facing windows and doors are triple glazed and are protected from wind and solar gain with deep soffits.

Built to PHI Low Energy certification standards, the home prioritises warmth, air quality, and low maintenance, allowing its occupants to enjoy their home, and their retirement, without compromise. One of the owners lives with breathing issues, and exposure to cold has previously led to serious infections, so as they approached retirement, they knew their next home needed to be consistently warm and dry. Wilf and Min say the move has allowed them more time to enjoy their retirement, rather than managing a cold or costly house, or dealing with sickness. They even see the home as an investment in their health and longevity of life. “We just take it easy now,” says Wilf.

"

It was very important as we get older that our house maintained warmth and looked after our health. Once you’ve paid the initial [build] costs, the cost of comfort is very cheap because you don’t have to heat the home to be comfortable. We just live in the whole house. It’s a whole lot warmer. It’s a lot quieter. We just love it.

"

— Wilf and Min

Meet the team Behind this project

Designer dean and iliesa

Iliesa Chapman and Dean Baldock

Dean and Iliesa are Waikato based architectural designers who brings a collaborative, people-centered approach to architecture.

Design Components

Floor
EPS raft slab 200mm U-value = 0.182 W/(m²K)
Wall
140mm timber frame with service cavity U-value of 0.24 W/(m²K)
Roof
Double layer of fibreglass insulation U-value of 0.129 W/(m²K)
Window Joinery Frame
Eco Windows German Wood Alu Uf value 1.2 W/(m²K)
Glazing
Triple Glazed Low E Argon Ug value 0.50 W/(m²K) G Value 50%
Ventilation
Stiebel Eltron LWZ 280 (Balance)

Performance Specs

Heating Demand
20.1kWh/(m²yr)
Heating Load
11.3W/m²
Frequency of Overheating
3.2% year over 25C
Treated Floor Area
177m²
Form Factor
3.9
Air Leakage @ 50Pa
1.5ACHn50
Per Demand
23kWh/(m²yr)
