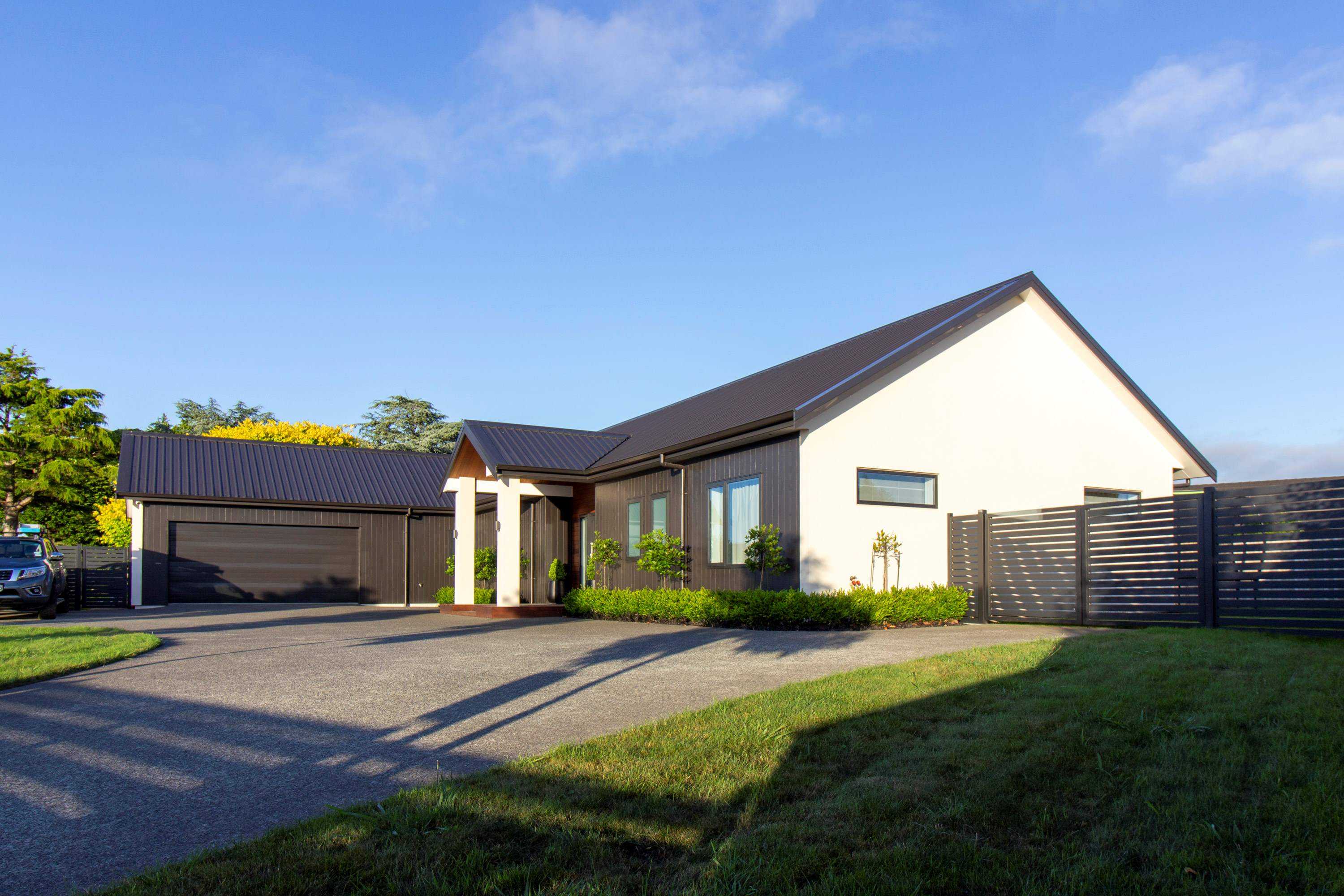

Tirimoana side straight

EHAUS EURO

Otamatea

Carbon Savings

11,428 KG

Heat Savings

92%

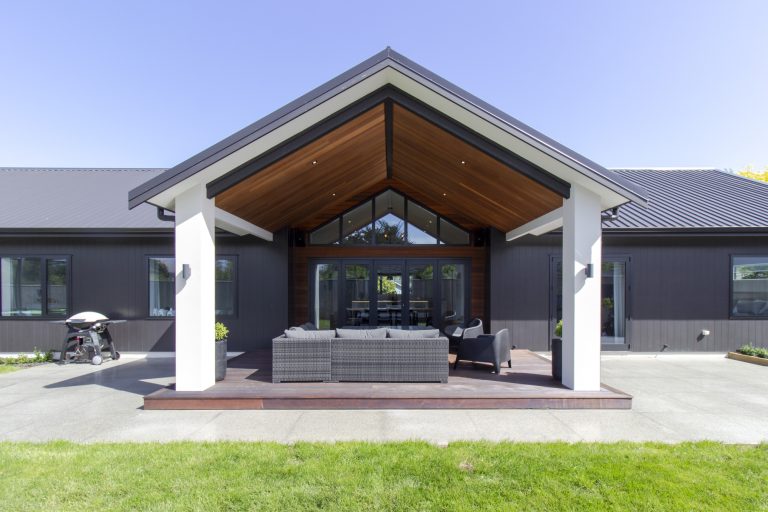

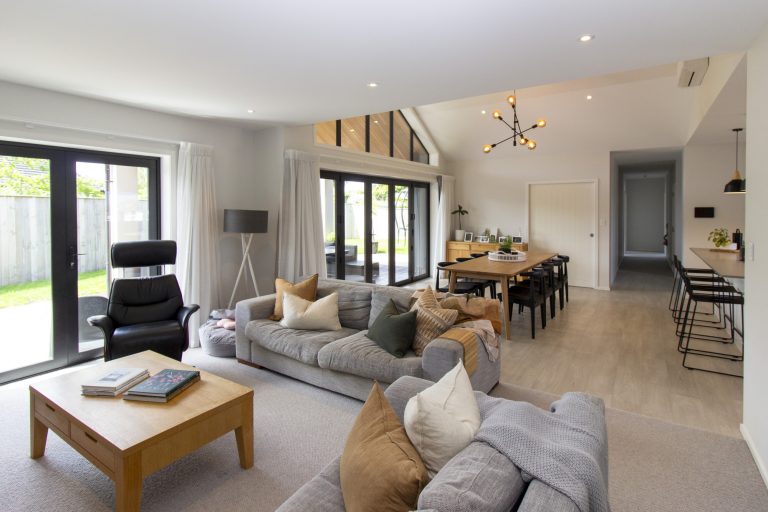

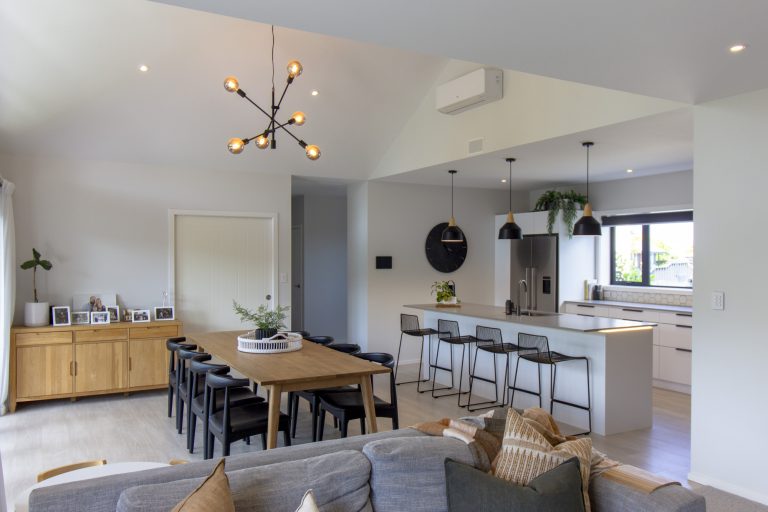

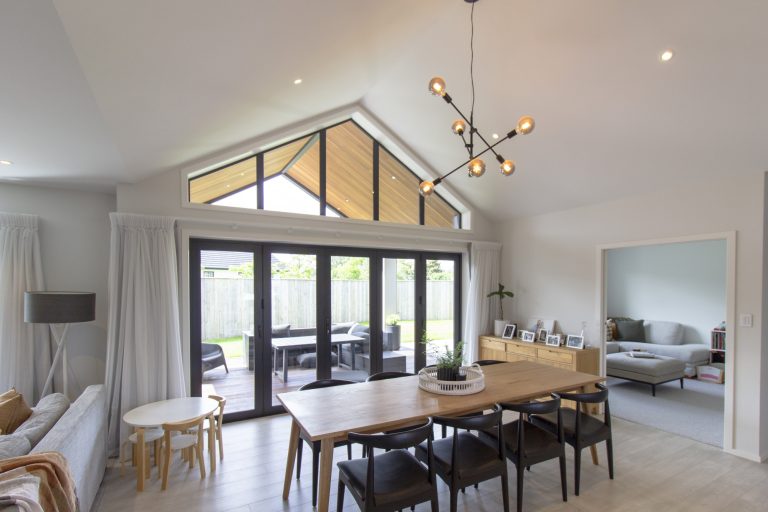

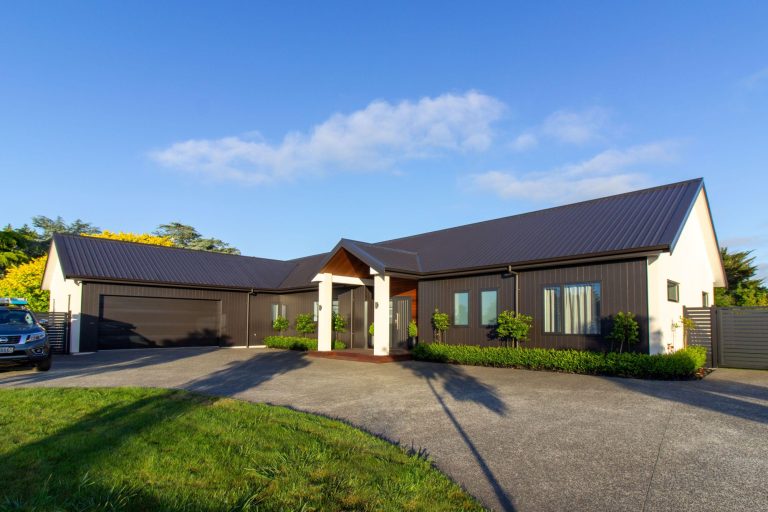

This energy-efficient three-bedroom home has a generous 193sqm floor area, including an open plan living space, office, separate media room, and double garage with workshop. The impressive raking ceiling in the dining area provides a sense of space like no other and flows to the outdoor living space. But there's more to this house than just its beautiful design.

This home is an eHaus Euro, meeting our premium performance standard. It incorporates thicker walls (14cm vs standard 9cm), higher levels of insulation in the slab, walls, and ceiling, thermally broken aluminium joinery, and a Zehnder ventilation unit, all exceeding industry standards in energy efficiency and environmental impact.

The eHaus Whanganui team constructed the frames on-site, ensuring utmost control over thermal bridges and making necessary improvements along the way. The result was a home that not only looked spectacular but also performed exceptionally in terms of energy conservation and indoor comfort.

Meet the team Behind this project

Design Components

Floor
Fully insulated concrete pad with a U-value of 0.182 W/(m²K)
Wall
140mm timber frame with a U-value of 0.201 W/(m²K)
Roof
Double layer of fibreglass insulation with a U-value of 0.137 W/(m²K)
Window Joinery Frame
APL Altherm - Thermally Broken Aluminium with a U-value of 4.2 W/(m²K)
Glazing
Double glazed Argon with Ug-value of 1.12 W/(m²K) g-value of 61%
Ventilation
Zehnder ComfoAir Q350 MHRV
Hot Water
Bosch Compress 3000 - 270L capacity hot water heat pump

Performance Specs

Heating Demand
11.5 kWh/(m²yr)
Heating Load
10.7 W/m²
Frequency of Overheating
2.6% year over 25℃
TFA
174.89
Form Factor
3.47
Air Leakage @ 50Pa
0.47
Per Demand
32.0 kWh/(m²yr)

Consultant: Maria Rei

Certifier: N/A
