Fan Napier 3441 LR

EHAUS PACIFIC

Poraiti

Carbon Savings

6,194 KG

Heat Savings

82%

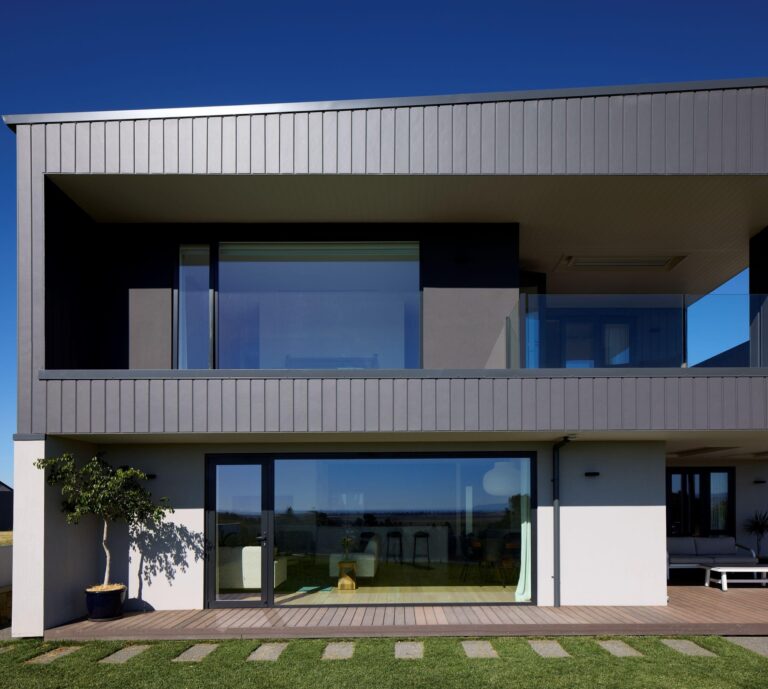

The eHaus Pacific is a Box Modern style home that is perfect for how the owners live now, and will easily adapt to any changes in the future. This 250sqm, three-bedroom home is split over two levels, with distinctive floor to ceiling picture windows that make the most of the views out to sea and towards the hills. In keeping with the home’s commitment to using quality materials, the striking exterior features hardworking Oblique™ Weatherboard by James Hardie which creates a modern aesthetic and helps the upper level stand out.

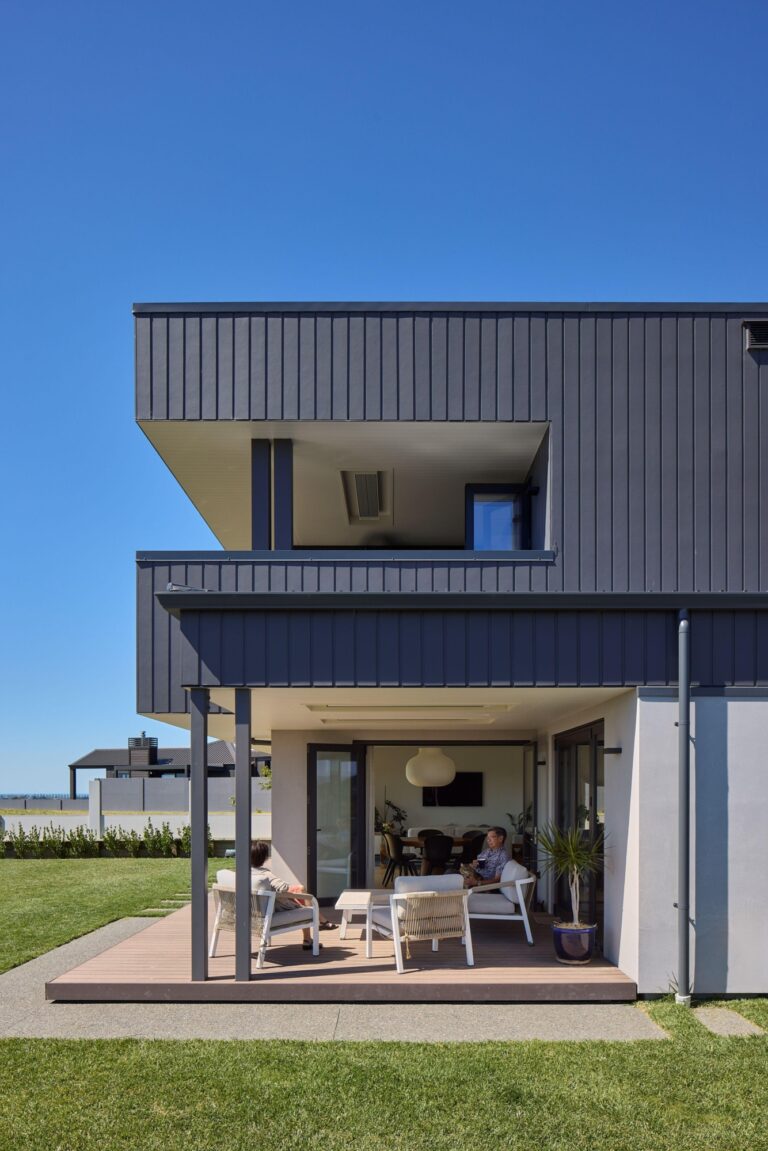

The interior is designed to complement the way the couple like to live and entertain. The upper level includes the main bedroom and a second living area with a kitchenette to provide independence and privacy when guests are staying. Downstairs, an open-plan living and dining space opens to a covered patio with heating for year-round use.

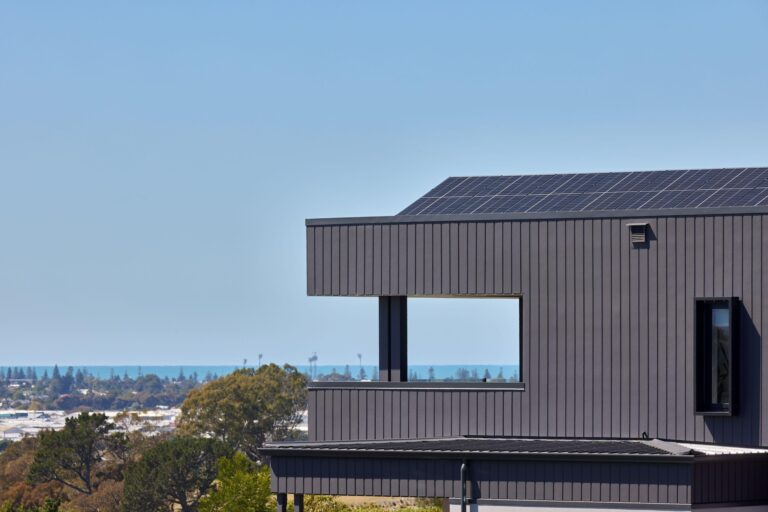

The ventilated “closed kitchen” is a distinctive design feature. “It’s like an enlarged scullery. We call it the chef’s kitchen, and it has a sliding door to close it off. It is made for Chinese cooking which usually has strong aromas. We can stop them from wafting through the house as much as possible,” says Jee. Nothing has been left to chance. The home is pre-wired for an internal lift should it be needed, solar panels on the roof and a 5000-litre water tank means they can be self-sufficient in an emergency.

Photo credit: Simon Wilson

"

The concept with hyperinsulation combined with a ventilation system means it is nice and warm in winter. Having solar has also been a success. We have an EV car which is essentially solar powered. We love the views, the warmth and the functionality.

"

— Jee and Peng

Meet the team Behind this project

Dean Baldock

Dean Baldock

Dean is a Waikato based architect who brings a collaborative, people-centered approach to architecture.

Design Components

Floor
Fully insulated concrete pad with a U-value of 0.182 W/(m²K)
Wall
140mm timber frame with service cavity U-value of 0.24 W/(m²K)
Glazing
Double Glazed Ug value=1.1 W/(m²K) g- value = 42%
Ventilation
Zehnder ComfoAir Q350 MHRV
Cladding
Oblique™ Weatherboard by James Hardie

Performance Specs

Heating Demand
24.1 kW/(m²a)
Heating Load
14.2 W/m²
Frequency of Overheating
2.6% year over 25C
TFA
176.2m²
Form Factor
3.29
Air Leakage @ 50Pa
0.9ACH
Per Demand
39 kWh/(m²yr)

Consultant: eHaus - Maria Rei

Certifier: N/A
