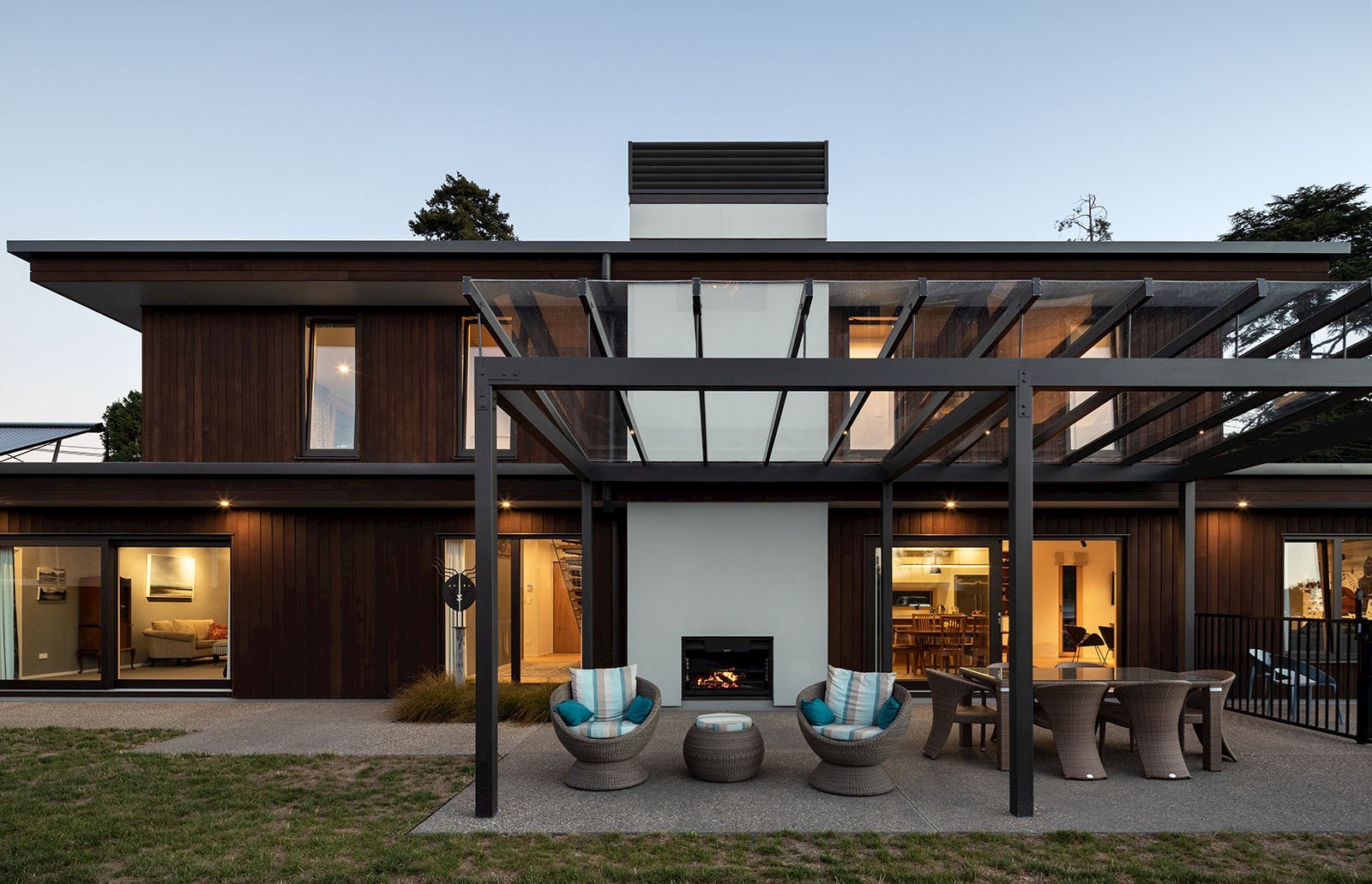

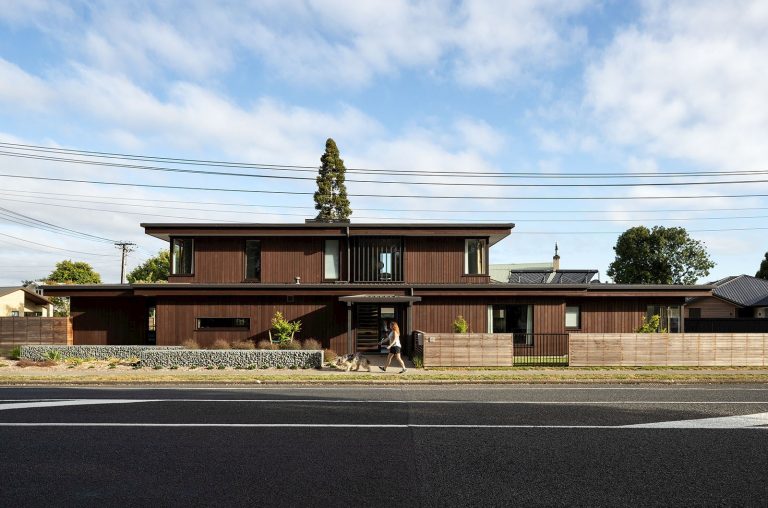

Tim Ross from Architype met the challenge of a long narrow site and district plan setback requirements for this couple relocating to Cambridge who wanted a comfortable, energy-efficient house that would meet their needs as they aged. The layout, structure, services and aesthetics of the building tightly work together to create a simple yet extremely high performing building. Construction was with structurally insulated panels (SIP). A beautifully crafted and designed family home.
Meet the team Behind this project
eHaus Waikato
"We are proud to be leading the way in high performance design, architecture and construction in Waikato."
Tim Ross
Tim is an award winning architect specialising in the design of high performance Passive House and low energy architecture. He has a wealth of experience in designing both private homes and multi-unit projects.
Design Components
Floor
Fully insulated concrete pad with a U-value of 0.232 W/(m²K)
Wall
Structural Insulated Panels with PUR (025) 90mm, with 20mm services cavity U-value = 0.304 W/(m²K)
Roof
Timber framed roof with 315mm of batts insulation (040 – 047) U-value = 0.15 W/(m²K)

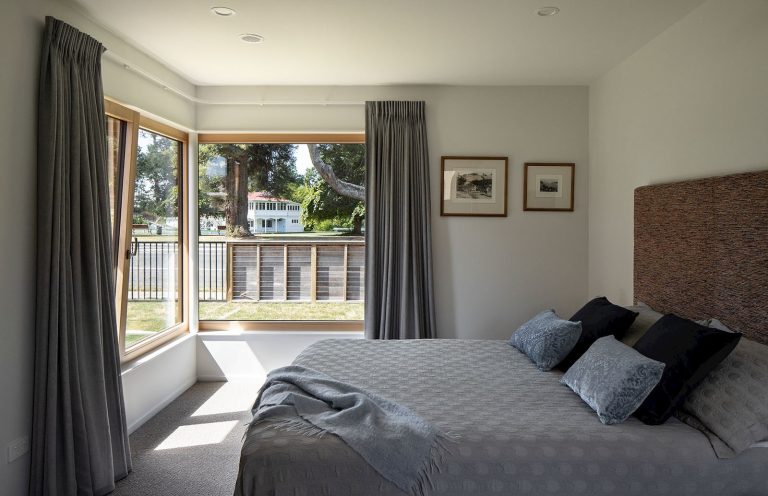

Window Joinery Frame
Dopfner, Slim Double glazed spruce framed and aluminium shielded tilt and turn windows U w-value = 1.32 W/(m²K)
Glazing
Double Glazed Low E Argon Ug value 1.12 W/(m²K) G Value 58%
Ventilation
Zehnder Q350 MHRV
Hot Water
2 x Apricus ETC30 solar collectors on 20 degree frames connected to Peter Cocks 300L silver bullet tank
Heating/Cooling
Daikin FTXS46L (4.6kw cooling/5.4kw heating) high wall
Performance Specs
Heating Demand
14.7 kWh/(m²yr)
Heating Load
13.3 W/m²
Frequency of Overheating
0%
TFA
207.6m²
Form Factor
3.1
Air Leakage @ 50Pa
0.3 ACH
Per Demand
42 kWh/(m²yr)
Consultant: Architype NZ
Certifier: Sustainable Engineering - Jason Quinn
