C2 WKI0278

EHAUS EURO, PHI LOW ENERGY

Waikato Horsham Downs

Carbon Savings

24,950 KG

Heat Savings

82%

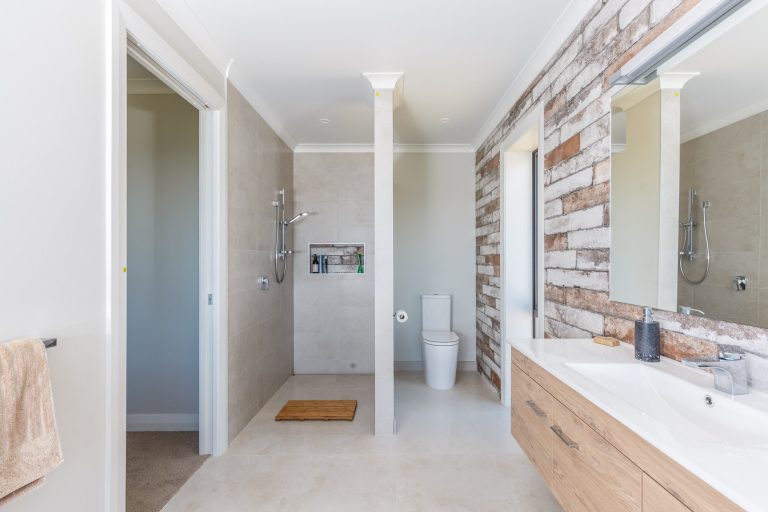

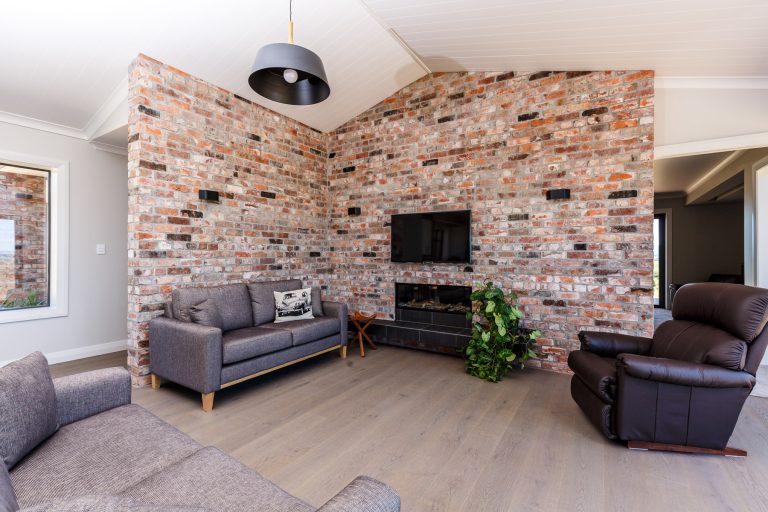

This expansive 234sqm residence, accompanied by a 66sqm garage and 112sqm outdoor living area, embodies luxury and spaciousness. Featuring three bedrooms, including a master suite with a spacious ensuite and walk-in wardrobe, this home offers unparalleled comfort. A focal point of the living space is the Escea double-sided fireplace, creating a warm and inviting atmosphere.

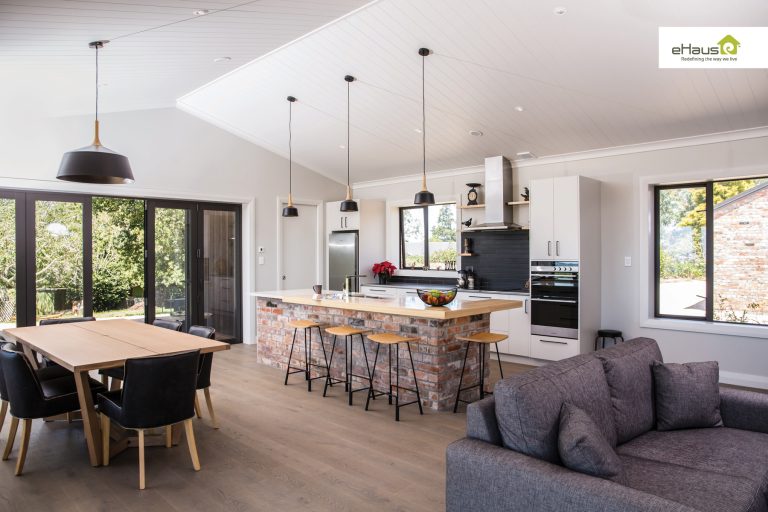

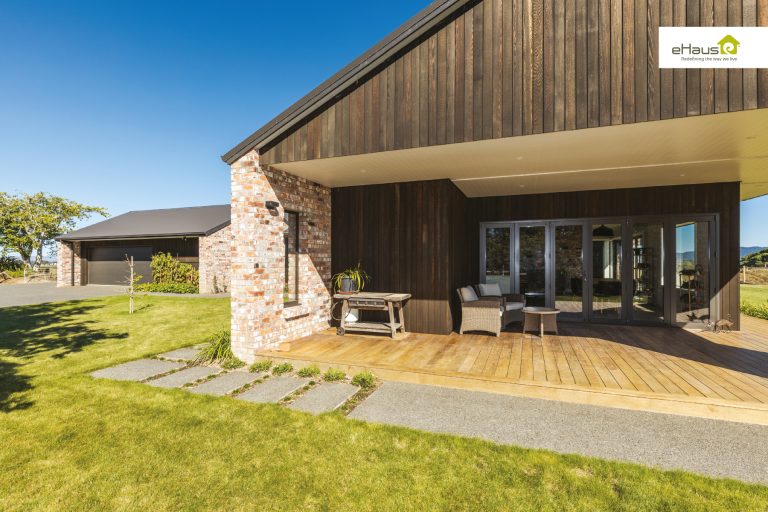

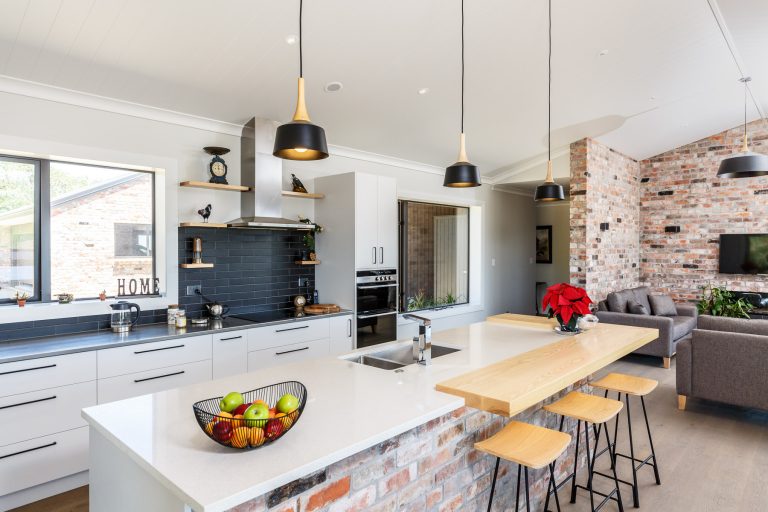

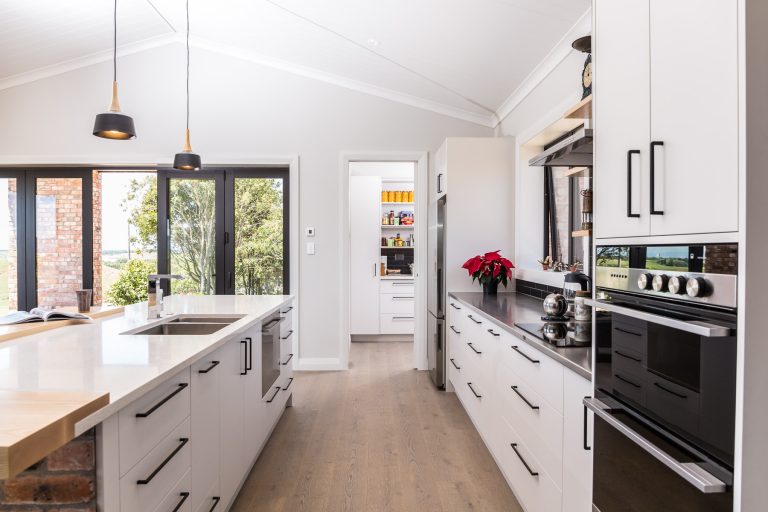

The open-plan design seamlessly integrates the kitchen, dining, and living areas, while a separate formal lounge adds sophistication. Additional highlights include an office, ideal for remote work or study. Clad with recycled bricks and Cedar vertical shiplap, and adorned with aluminium window joinery with double glazing, this home is a sanctuary for modern living.

Meet the team Behind this project

Ross designhaus

Ross Bennett

Ross is a specialist in Passive House design and is located in the Manawatū, but works on projects around the country.

Design Components

Floor
Fully insulated concrete pad with a U-value of 0.183 W/(m²K)
Wall
140mm timber frame with service cavity U-value of 0.220 W/(m²K)
Roof
Double layer of fibreglass insulation U-value of 0.132 W/(m²K)
Window Joinery Frame
Thermally Broken Aluminium NZ Uw value 3.8 W/(m²K)
Glazing
Double Glazed Low E Argon Ug value 1.12 W/(m²K) G value 61%
Ventilation
Zehnder Comfo 350 MHRV
Hot Water
Econergy Heat Pump 300 litre internal storage
Heating/Cooling
4.5kW Heat Pump
Power Generation
6.6 kW Solar PV system

Performance Specs

Heating Demand
24.4 kWh/(m²yr)
Heating Load
17.1 W/m²
Frequency of Overheating
1.5%
TFA
213.6 m²
Form Factor
3.96
Air Leakage @ 50Pa
0.53 ACH
Per Demand
54 kWh/(m²yr)

Consultant: eHaus - Jon Iliffe

Certifier: N/A
