EHAUS EURO, PASSIVE HOUSE CLASSIC

Waikato Taupiri

Carbon Savings

20,696 KG

Heat Savings

89%

A world-class energy-efficient design defines this home on a rural lifestyle block north of Hamilton. The collaborative design with Edwards White Architects ensured the home treads lightly on the environment despite its generous 252sqm footprint. Computer modelling before construction used local climate data to ensure ultimate thermal performance.

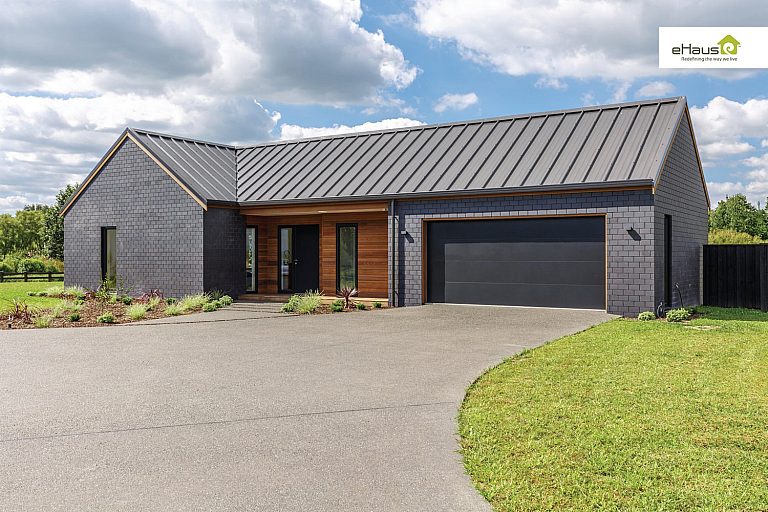

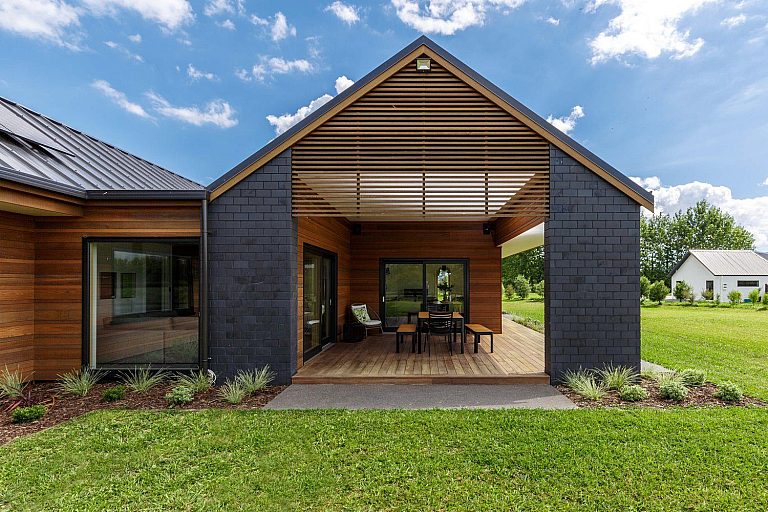

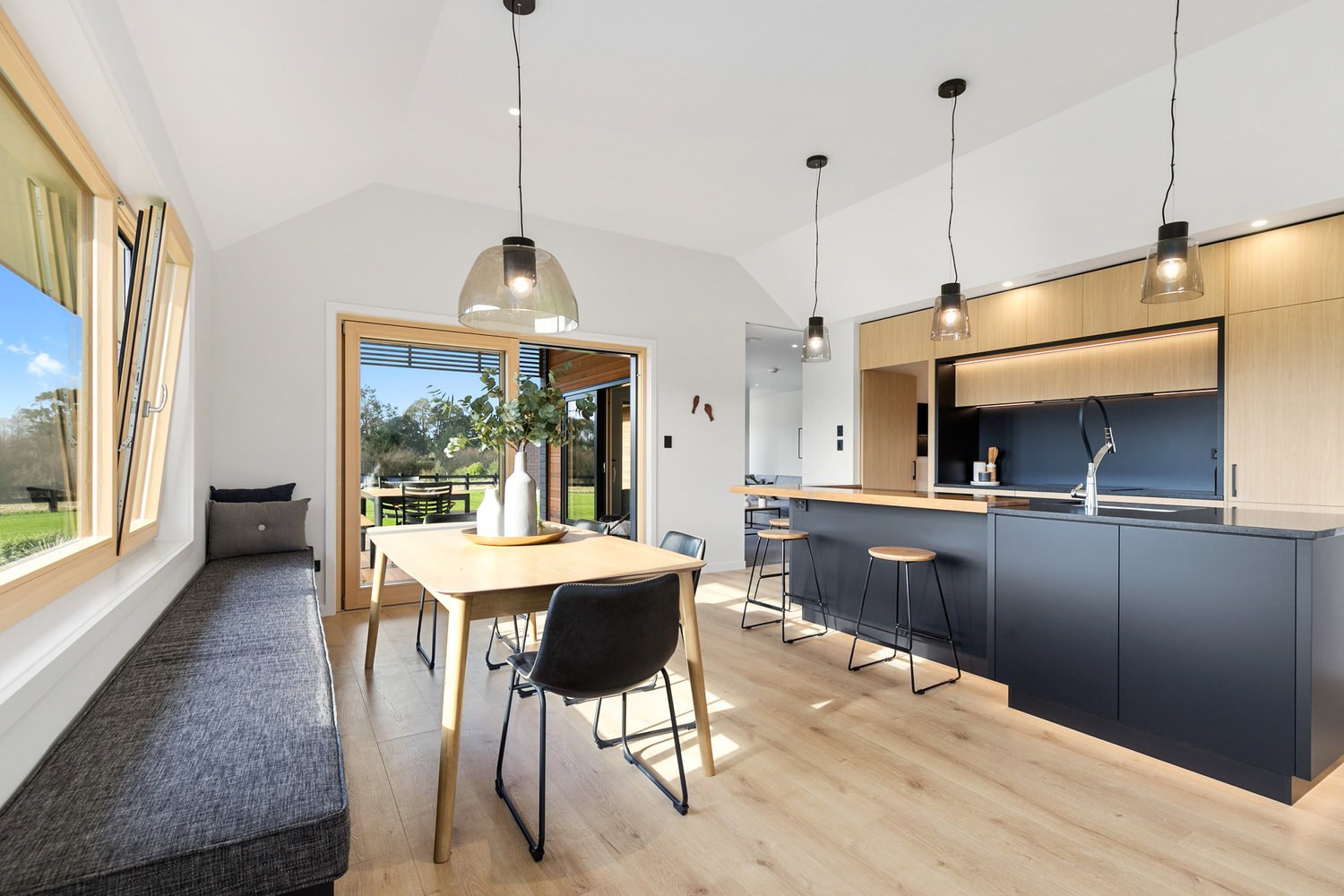

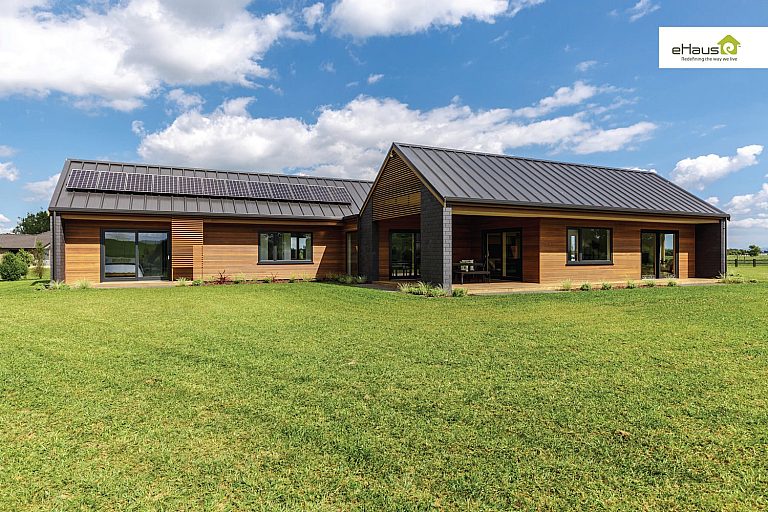

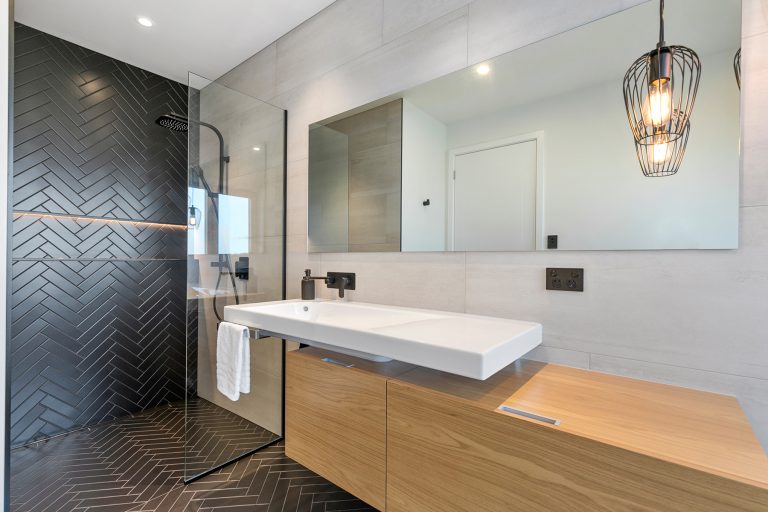

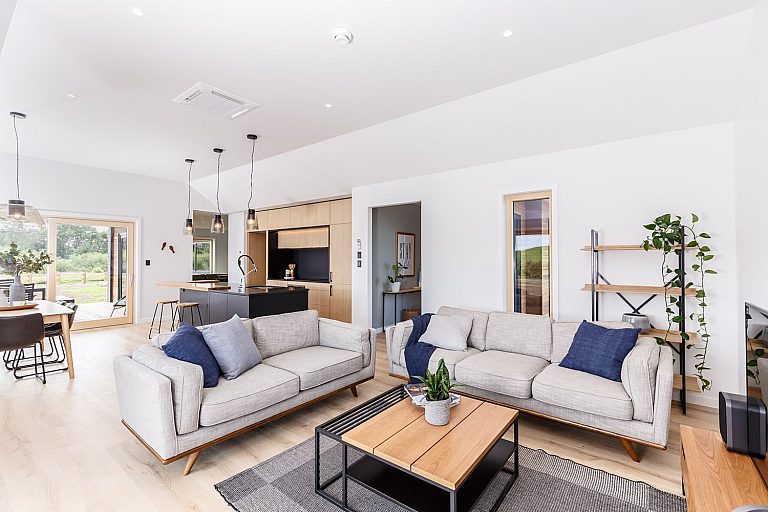

The Euro from eHaus is built to the German PassivHaus energy-efficient building standard, the highest on the planet. The four-bedroom, two bathroom home is north facing for ultimate solar gain. Two living areas spill onto a spacious deck. The contemporary black brick and cedar, tie in well with modern designer kitchen, scullery, bathroom and laundry. German-engineered joinery, a solar photovoltaic system, hot water and ventilation systems and heat-pumps, plus airtight construction make this a star.

Design Components

Floor
Fully insulated concrete pad with a U-value of 0.183 W/(m²K)
Wall
140mm timber frame with service cavity U-value of 0.223 W/(m²K)
Roof
Double layer of fibreglass insulation U-value of 0.128 W/(m²K)
Window Joinery Frame

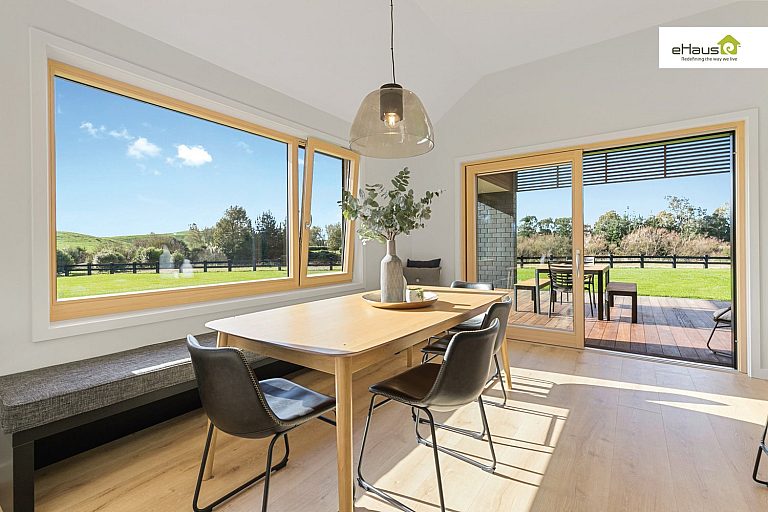

Energate 963 Wood Alu System Tilt Turn and lift and slide Uw value 1.5 W/(m²K)
Glazing
Double Glazed Low E Argon Ug value 1.15 W/(m²K)
Ventilation
Zehnder Q350 MHRV
Hot Water
Heat Pump with split system with internal water storage
Heating/Cooling
Compact cassette air conditioning system 5.2kW cooling / 6kW heating
Power Generation
5Kw Solar PV system

Performance Specs

Heating Demand
15 kWh/(m²yr)
Heating Load
13 W/m²
Frequency of Overheating
0%
TFA
187.6 m²
Form Factor
3.7
Air Leakage @ 50Pa
0.41 ACH
Per Demand
42 kWh/m²/year

Consultant: eHaus - Birgit Bartel

Certifier: Sustainable Engineering - Jason Quinn
