EHAUS EURO, PHI LOW ENERGY

Waikato Te Aroha

Carbon Savings

18,736 KG

Heat Savings

84%

Introducing a versatile home with a dedicated guest wing which can be used as a Bed and Breakfast option. The guest wing includes a bedroom, bathroom, living area, private courtyard, separate entry, and carport, all connected to the main house through a convenient linkway.

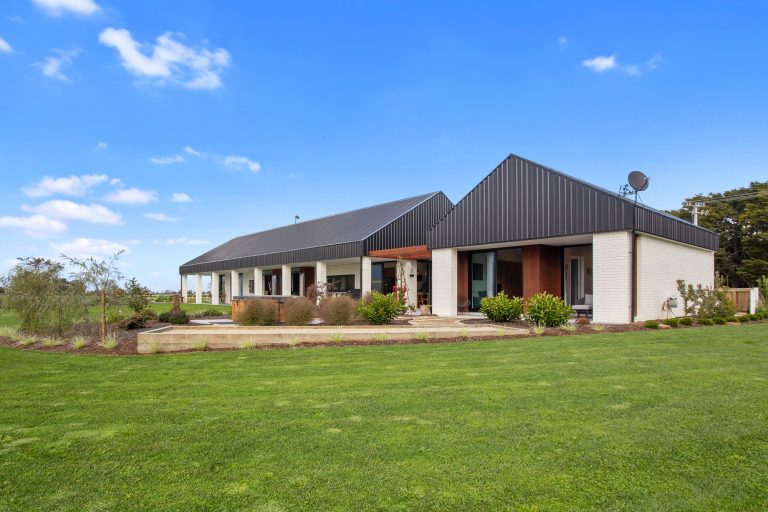

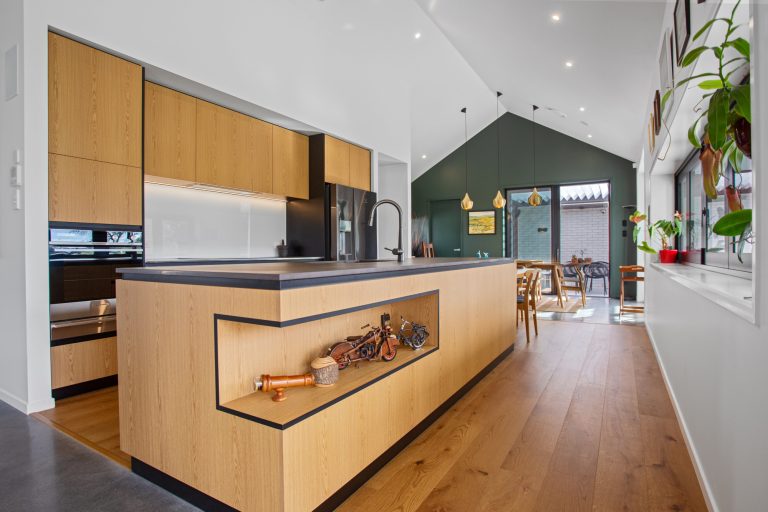

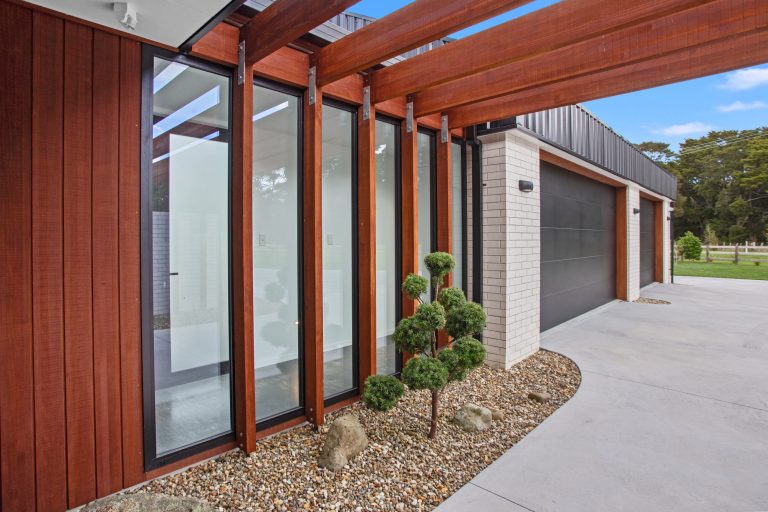

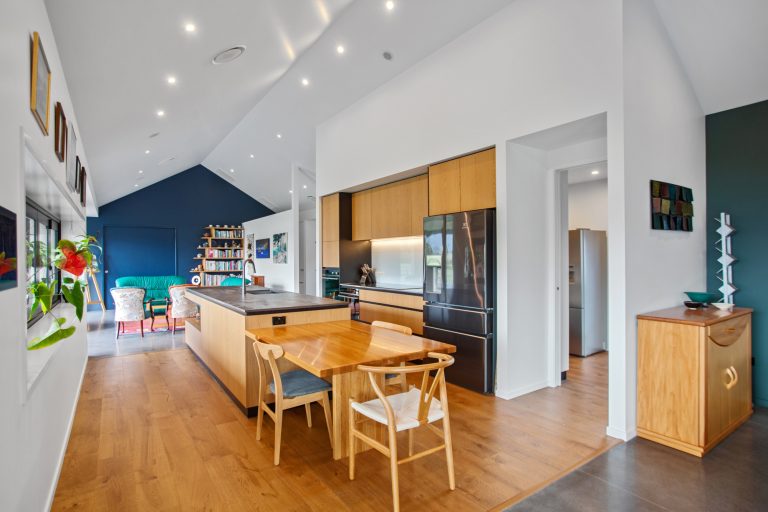

The main house has two bedrooms, including a master with a walk-in wardrobe and ensuite, alongside an open plan living and kitchen space, with a separate office or media room for added functionality. Outside, enjoy a walled kitchen garden, along with a courtyard featuring a louvre roof, perfect for outdoor relaxation. Spanning 212sqm, the home is clad in Madrid brick with detailing such as screening and a pergola in Abodo vertical shiplap, blending elegance with functionality.

This home received a Gold Award at the Registered Master Builder 2021 House of the Year Competition, Waikato – a true testament to the project architecture, by Johnson Brierley Architecture, and its construction, by eHaus Waikato.

"

It's certainly good waking up in the morning and having to check a gauge to see what temperature it is outside. The house stays consistently warm in winter, and the Zehnder ventilation is instrumental in that. At present, 12 degree outside air is filtered and delivered into the house at 22 degrees. Works for me! We really enjoy our eHaus - over five years now and no regrets in making the extra investment.

"

— Steve

Design Components

Floor
Fully insulated concrete pad with a U-value of 0.182 W/(m²K)
Wall
140mm timber frame with service cavity U-value of 0.223 W/(m²K)
Roof
Double layer of fibreglass insulation U-value of 0.131 W/(m²K)
Window Joinery Frame
Nulook-Thermally broken aluminium-Uf value = 4.30 W/(m²K) | Euroview CP130 – Thermally broken aluminium-Uf value = 2.35 W/(m²K)
Glazing
Double Glazed Argon Ug value=1.12 W/(m²K) g- value = 61%
Ventilation
Zehnder ComfoAir Q350 MHRV
Hot Water
Bosch Compress 3000 – 270L capacity heat pump hot water cylinder
Heating/Cooling
Air to air heat pump

Performance Specs

Heating Demand
22.8 kWh/(m²yr)
Heating Load
17.7 W/m²
Frequency of Overheating
1.7 % year over 25C
TFA
212.3 m²
Form Factor
3.86
Air Leakage @ 50Pa
0.90 ACH
Per Demand
37.3 kWh/(m²yr)

Consultant: Maria Rei

Certifier: Non certified
