Te Awamatu
WK 2021 Gold 120

EHAUS EURO

Waikato Te Awamutu

Carbon Savings

13,786 KG

Heat Savings

84%

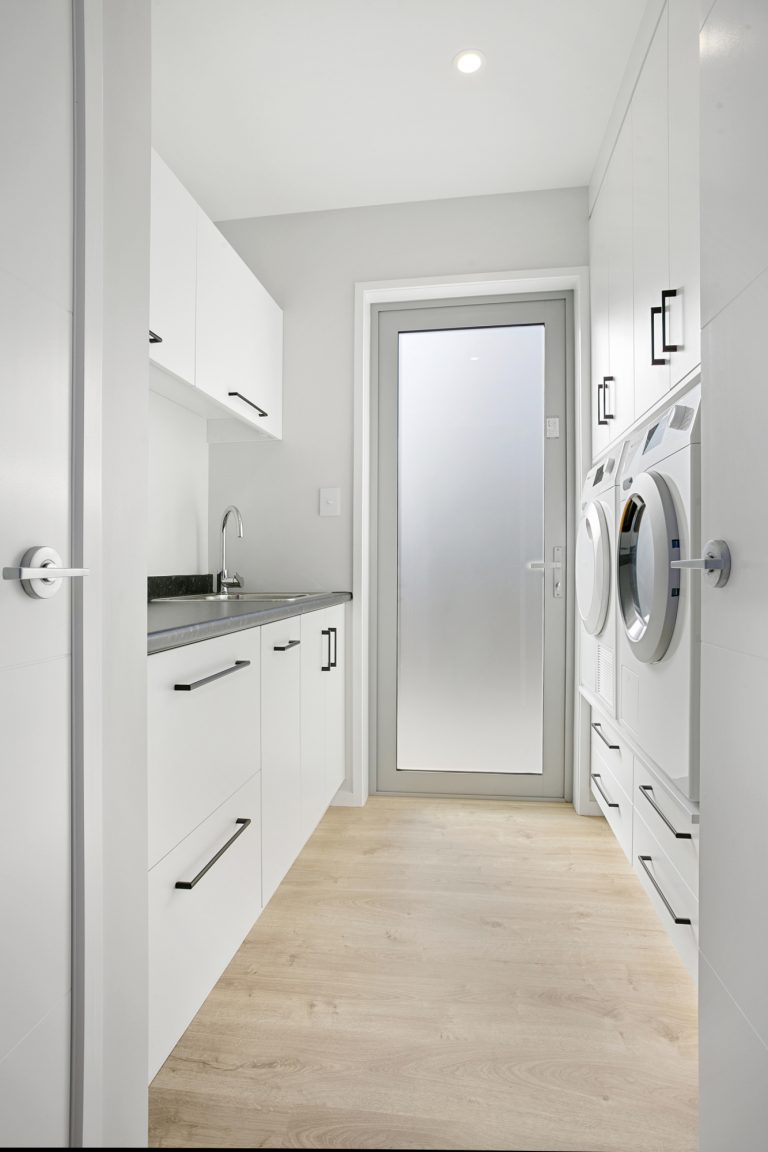

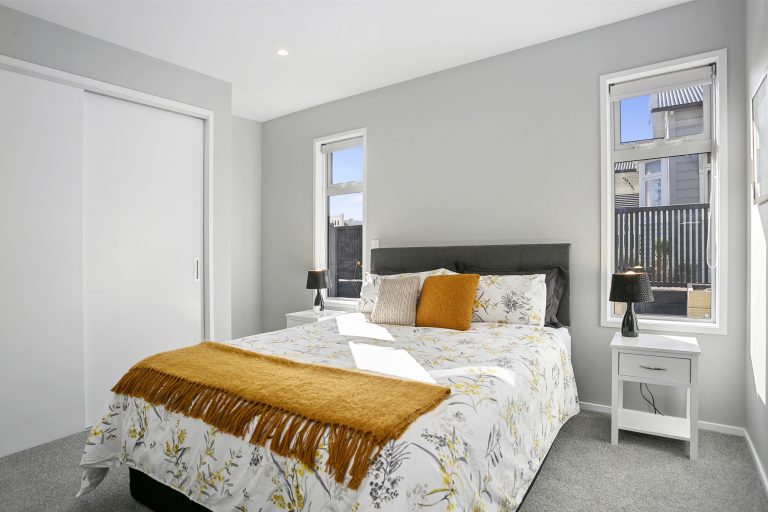

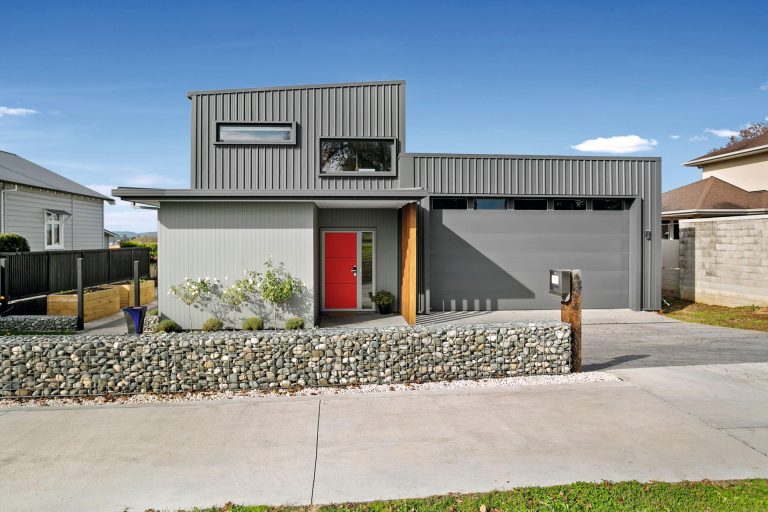

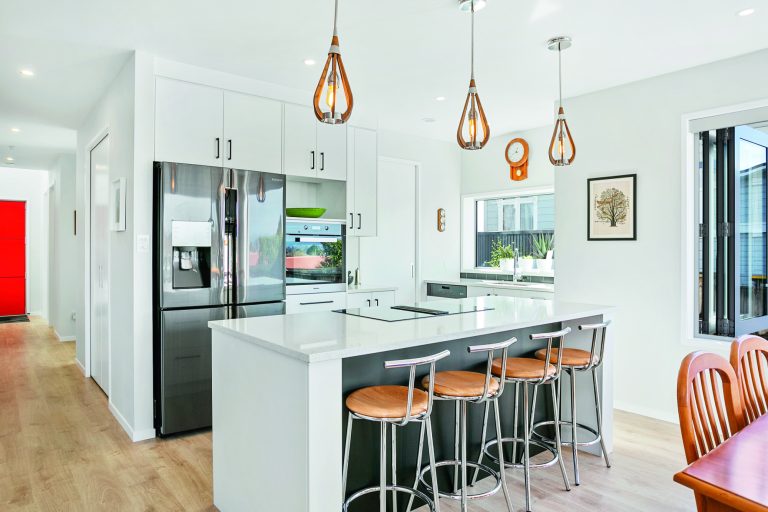

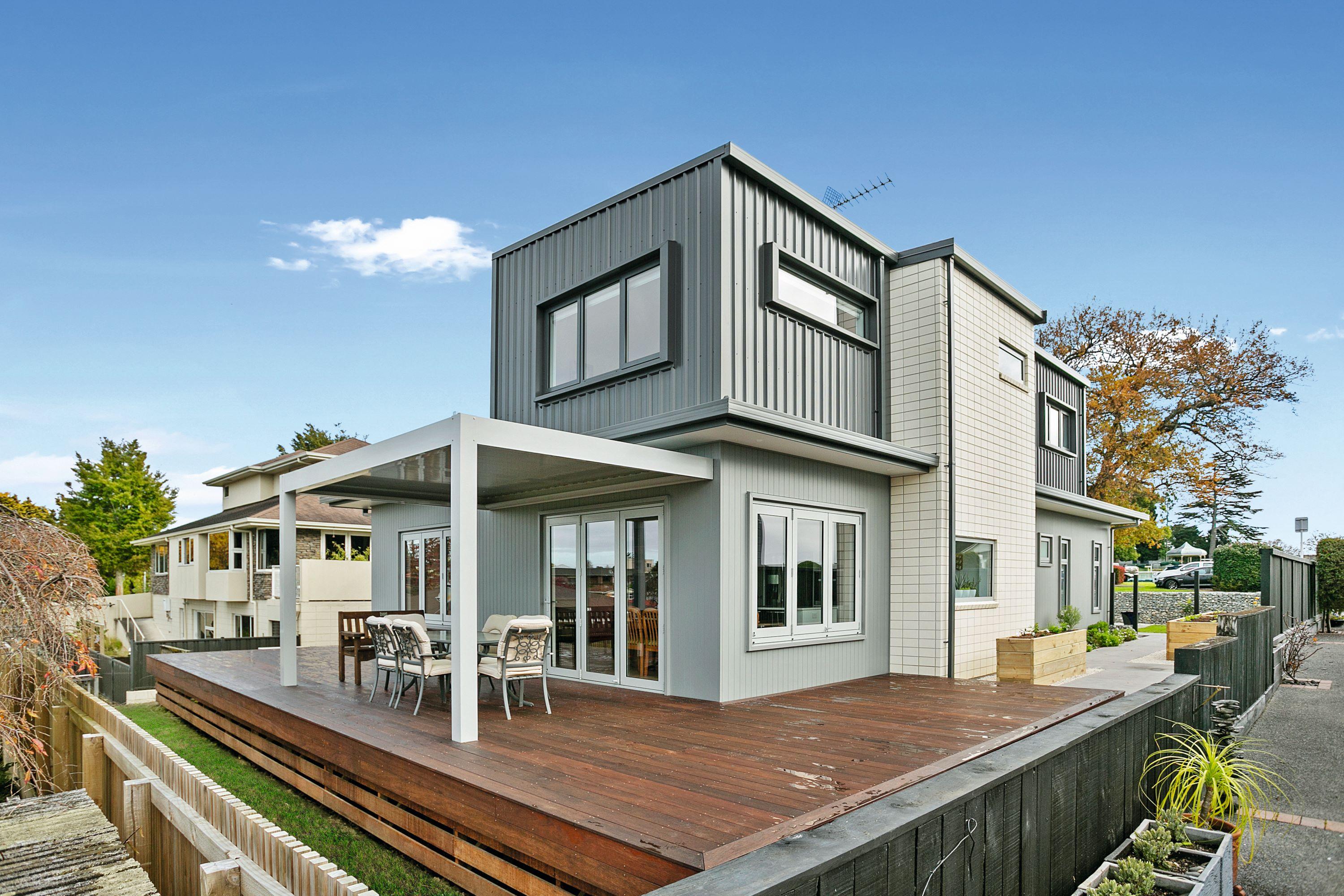

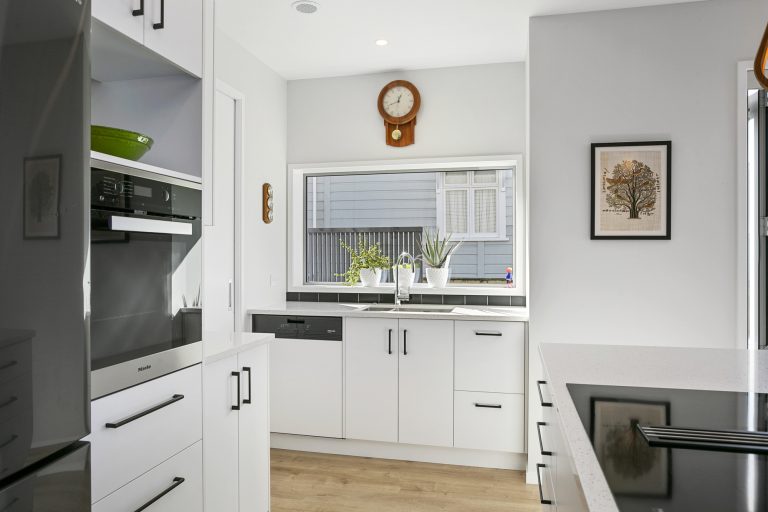

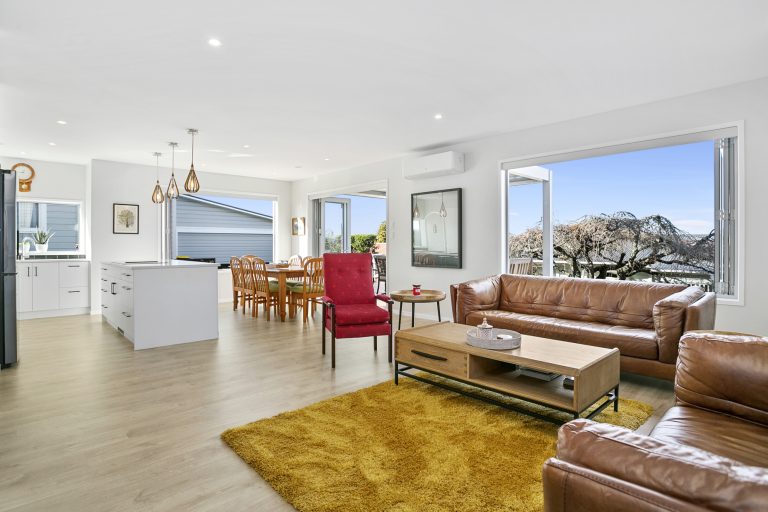

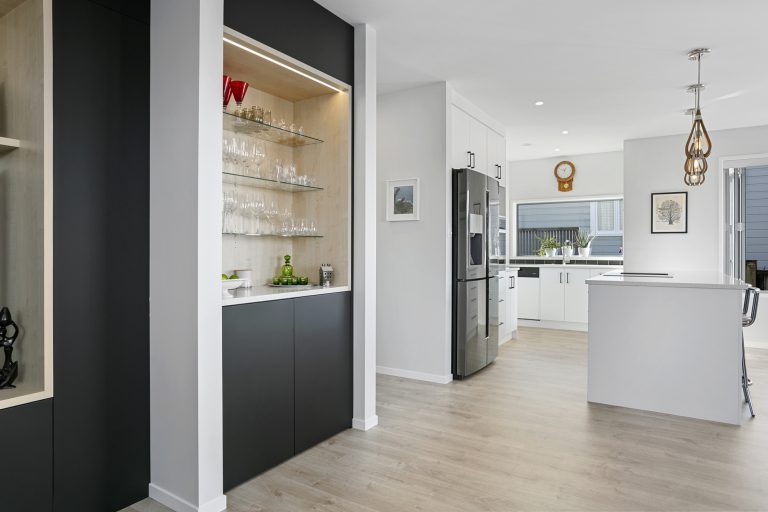

Introducing a meticulously designed  222sqm two-storey, three-bedroom home, offering year-round comfort with minimal energy consumption. The lower level encompasses a spacious kitchen, dining and living area, an office, separate laundry, garage, and a bedroom with ensuite, providing convenience and functionality. The living space features inbuilt cabinetry and seamlessly flows to an elevated outdoor living area with a louvred pergola, perfect for entertaining or relaxation.

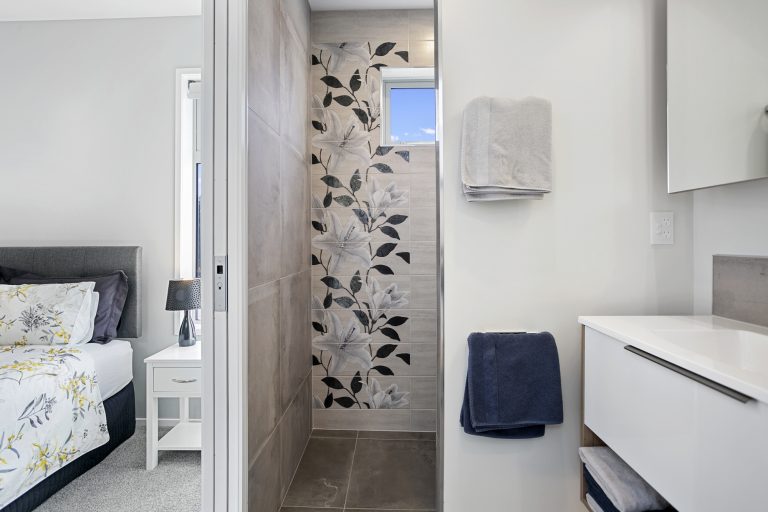

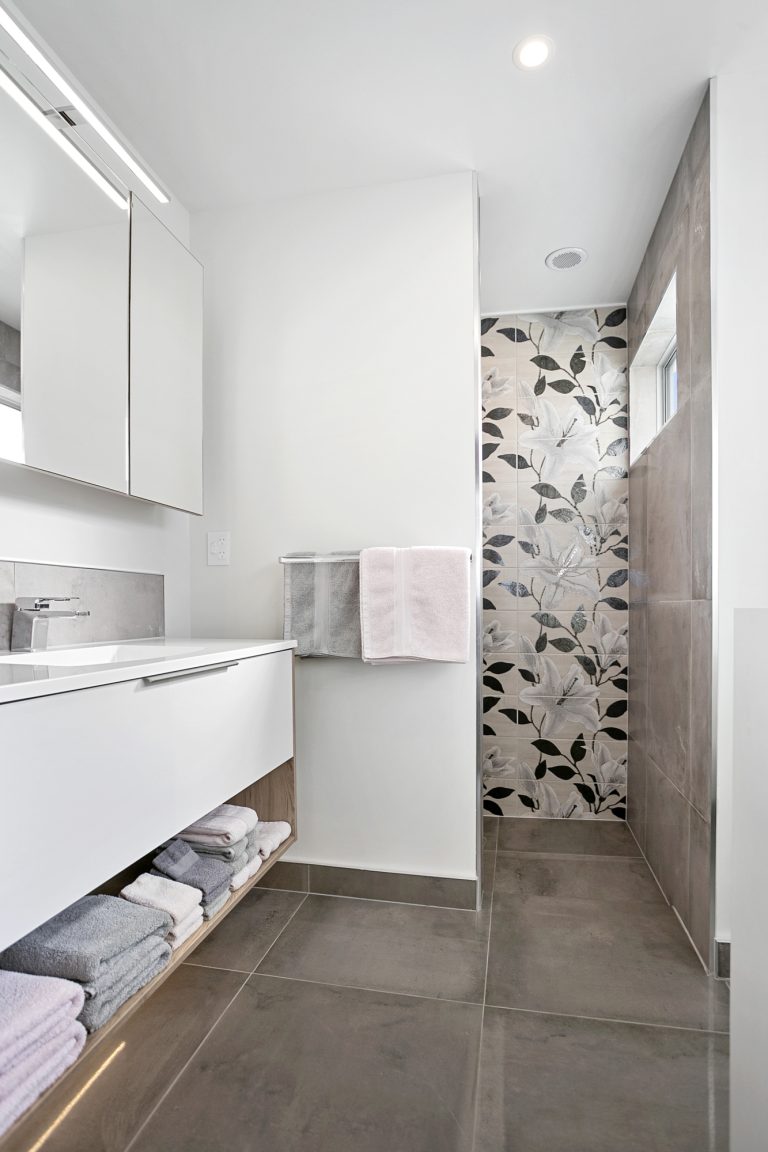

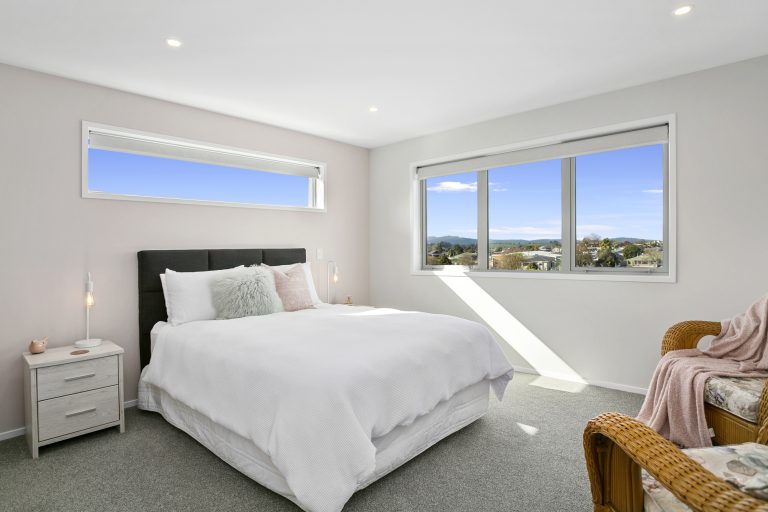

Upstairs, the master suite boasts an ensuite and robe, accompanied by a sewing room or office, and the third bedroom, offering versatile living options to suit various needs. Crafted with careful consideration, this home balances practicality with luxury, providing a comfortable and stylish living environment.

This home received a Gold Award at the Registered Master Builder 2021 House of the Year Competition, Waikato – a true testament to the project architecture, by Johnson Brierley Architecture, and its construction, by eHaus Waikato.

Design Components

Floor
Fully insulated concrete pad with a U-value of 0.182 W/(m²K)
Wall
90mm timber frame with service cavity U-value of 0.285 W/(m²K)
Roof
Double layer of fibreglass insulation U-value of 0.131 W/(m²K)
Window Joinery Frame
APL Altherm -Thermally broken aluminium- Uf value = 4.0 W/(m²K)
Glazing
Double Glazed Argon Ug value=1.12 W/(m²K) g- value = 61%.
Ventilation
Zehnder ComfoAir Q350 MHRV
Hot Water
Bosch Compress 3000 – 270L capacity heat pump hot water cylinder

Performance Specs

Heating Demand
23.7 kWh/(m²yr)
Heating Load
18.3 W/m²
Frequency of Overheating
6% year over 25C
TFA
147.8 m²
Form Factor
3.15
Air Leakage @ 50Pa
0.6ACH
Per Demand
44 kWh/(m²yr)

Consultant: Maria Rei

Certifier: Non certified
