Waikato – Horsham Downs

In by Shelley

Waikato – Horsham Downs

eHaus Euro PHI Low Energy - non certified

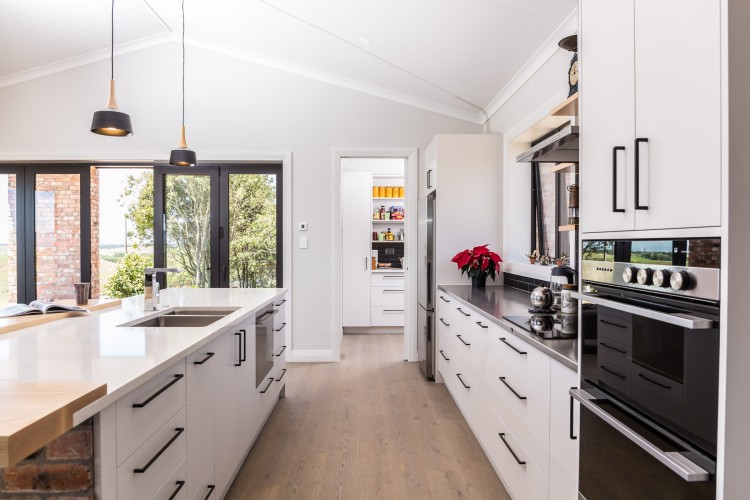

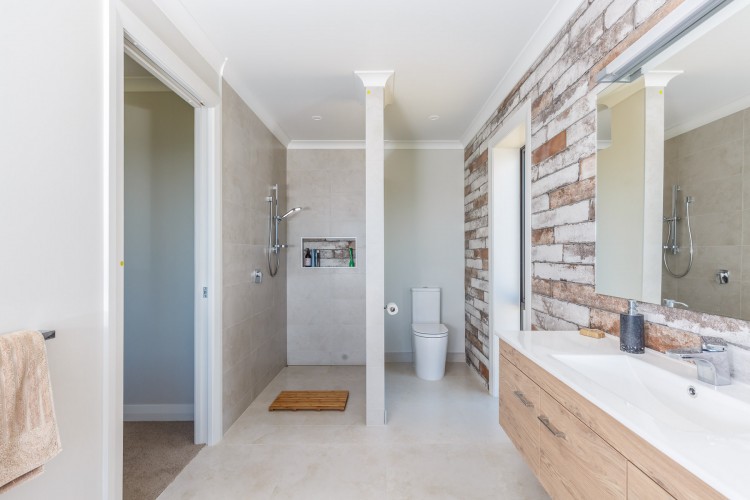

This beautiful 3 bedroom home sits proudly in the rural landscape overlooking the popular Horsham Downs area. The home has a modern kitchen with open plan living and separate formal lounge and spacious office. The generous Master-bed room has a large en-suite and walk in wardrobe.

Design Components

Floor – Fully insulated concrete pad with a U-value of 0.183 W/(m²K)

Wall – 140mm timber frame with service cavity U-value of 0.220 W/(m²K)

Roof – Double layer of fibreglass insulation U-value of 0.132 W/(m²K)

Window Joinery Frame – Thermally Broken Aluminium NZ Uw value 3.8 W/(m²K)

Glazing – Double Glazed Low E Argon Ug value 1.12 W/(m²K) G value 61%

Ventilation – Zehnder comfo 350 MHRV

Hot Water – Econergy Heat Pump 300 litre internal storage

Heating/Cooling – 4.5kW Heat Pump

Power generation – 6.6 kW Solar PV system



Performance Specifications

Heating demand 24.4 kWh/m2/yr

Heating load: 17.1 W/m2

Frequency of Overheating 1.5%

TFA: 213.6 m2

Form Factor 3.96

Air leakage@50Pa: 0.53 ACH

PER demand: 54 kWh/m2/yr

Experience this eHaus for yourself

Contact eHaus Waikato

Passive House Project Team

Architecture

eHaus - Ross Bennett

Construction

eHaus Waikato

Consultant

eHaus - Jon Iliffe

Certifier

n/a
